Achieve Real-World Noise Simulation with Spectre Transient Noise Analysis

From Ideal Signals to Real-World Behavior

In today's advanced analog and mixed-signal designs, first-pass silicon success requires more than just clean simulation results. Engineers often observe a disconnect between ideal simulations and real silicon performance—especially in applications like PLLs, SerDes, sigma-delta modulators, RF front ends, etc.

For example, even though a PLL has stable locking behavior in a transient simulation, it might exhibit unacceptable jitter and instability when fabricated.

Why Spectre Transient Noise Analysis is Essential

The Spectre Simulation Platform offers multiple noise analysis techniques, each suited to different circuit classes:

• AC noise analysis → For linear, time-invariant circuits
• Periodic noise (pnoise/hbnoise) → For nonlinear, periodic systems
• Transient noise analysis → For non-periodic and nonlinear circuits

Visualizing Device Noise: The Spectral Picture

Before we set up a transient noise simulation, it helps to picture what device noise looks like in the frequency domain. The noise spectrum graph below summarizes the key features every analog/RF engineer must internalize:

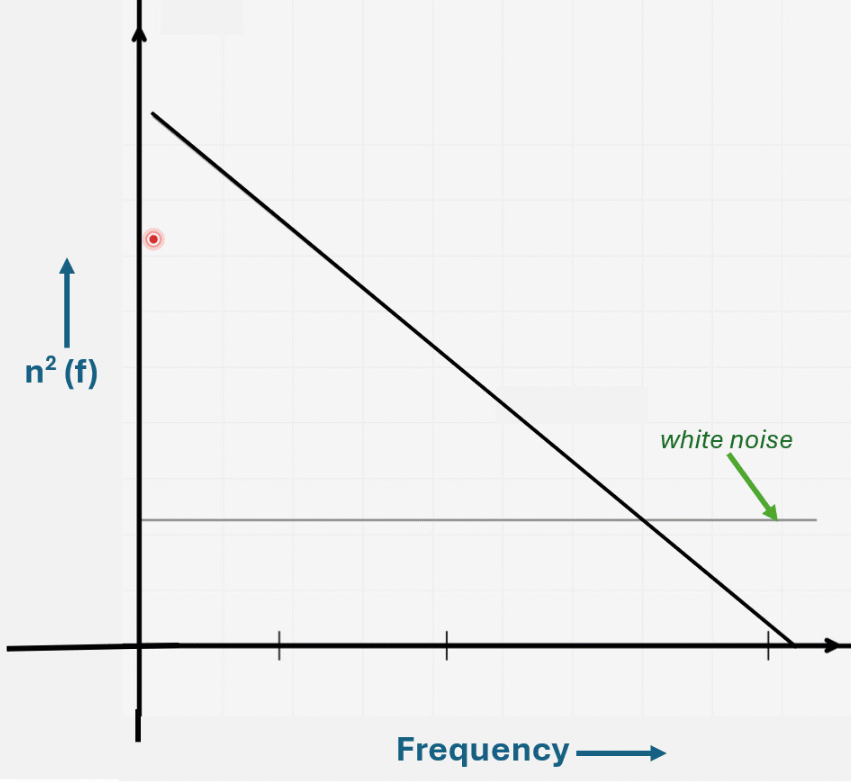

                                                 Figure 1: Noise spectrum

• A flat white-noise floor that dominates from mid to high frequencies, up to F_max
• A 1/f (flicker) noise slope that rises sharply at low frequencies, below the 1/f corner
• An additional n²/f component, highlighted to show higher-order low-frequency contributions
• Clear boundaries at F_min and F_max, defining the bandwidth over which transient noise is simulated

Why This Matters For Your Design

Real silicon noise is never flat. However, it can have a constant noise curve. Flicker noise dominates close to DC and—through nonlinear mixing in oscillators and PLLs—folds back around the carrier as close-in phase noise and long-term jitter. Transient noise analysis can model the noise folding because it injects noise sources directly into the time-domain simulation of non-periodic, nonlinear circuits.

Figure 1 visually answers the introduction's question: 'why does my PLL lock cleanly in simulation but jitter in silicon?' The 1/f tail and its folding are the culprits, and appropriate choices for F_min and F_max ensure those mechanisms are represented in your simulation.

What This Training Covers

The Spectre transient aoise analysis in Virtuoso Studio course provides a structured blend of theory and hands-on expertise.

1. Fundamentals of Noise Analysis

• Types of noise and their impact on circuits
• Overview of Spectre noise analysis methodologies
• Device noise modeling and spectral behavior

2. Transient Noise Concepts

• Definition and purpose of transient noise analysis
• Understanding computational challenges
• Key parameters: Noise seed, noise F_max and F_min, noise contribution, power spectral density settings for performing the transient noise analysis

3. Simulation Setup in Virtuoso Studio

• Configuring transient noise analysis in the Virtuoso ADE Explorer/Assembler
• Working with simulation options and forms
• Controlling accuracy and convergence parameters

4. Advanced Simulation Techniques

• Running simulations with multiple runs
• Statistical averaging
• Generating and analyzing Power Spectral Density (PSD) using fourier analysis settings

5. Comparative Noise Analysis

Comparing:

• Transient noise vs AC noise
• Transient noise vs pnoise
• Transient noise vs hbnoise

Helps engineers choose the right analysis for the right design problem.

6. Jitter Analysis and Time-Domain Insights

• Understanding jitter mechanisms
• Measuring jitter using transient noise
• Measuring jitter using sampled periodic noise (pnoise)

Interactive Learning: Visualizing Noise Behavior

This training emphasizes visual and experiential learning:

• Observe how noise evolves in time-domain waveforms
• Analyze signal distortion and jitter visually
• Compare different simulation methodologies side-by-side

This approach helps bridge the gap between theory and real-world design challenges. For more details, kindly navigate the training: Spectre Transient Noise Analysis in Virtuoso Studio.
