Green, Red, and Blue Lights in the Layout Design — What Do They Indicate?

As you know, even after generating the layout from the source, there can still be connectivity (binding) mismatches between the schematic and layout. Traditionally, fixing or debugging these issues requires manual navigation through multiple menus to verify connections - a process that is both time-consuming and prone to oversight.

Now, with Virtuoso Studio’s Bind Color Map, you can identify all binding issues with a single click. This feature not only provides an instant binding status report but also visualizes the problems in a clear, color-coded map, making it easy to spot unbound cells at a glance.

Why does this matter? Racing toward a tape-out deadline, even one unbound instance can derail your schedule. For example, in a precision analog filter design, missing a binding between matched transistor pairs can lead to hours of debugging and performance degradation.

Bind Color Map helps you catch these issues early, saving time, reducing errors, and keeping your project on track.

In this blog, we’ll explore the importance of binding checks, how Bind Color Map works, and provide references to help you get started.

Try the bind color map today and save time for tomorrow to boost the productivity of your design. Let us explore the blog to understand why I am telling this.

Why Binding Visualization?

Binding establishes the relationship between schematic and layout instances. When these bindings are incorrect or incomplete, the integrity of the design is at risk. Traditionally, designers have relied on tools like the Navigator or connectivity checks within both layout and schematic environments to validate bindings. While these methods provide detailed insights, they fall short of delivering a quick, holistic view of the overall design status.

The Bind Color Map feature addresses this gap by offering an instant, color-coded visualization of binding states across both schematic and layout canvases. This intuitive representation enables designers to quickly assess binding completeness and correctness, ensuring design integrity with greater efficiency.

How Does It Work?

Think of Bind Color Map as a traffic light for your design - simple, visual, and instant.

• Green = Bound instances and dummies
• Red = Unbound instances and unbound dummies
• Blue = Ignored instances and ignored dummies

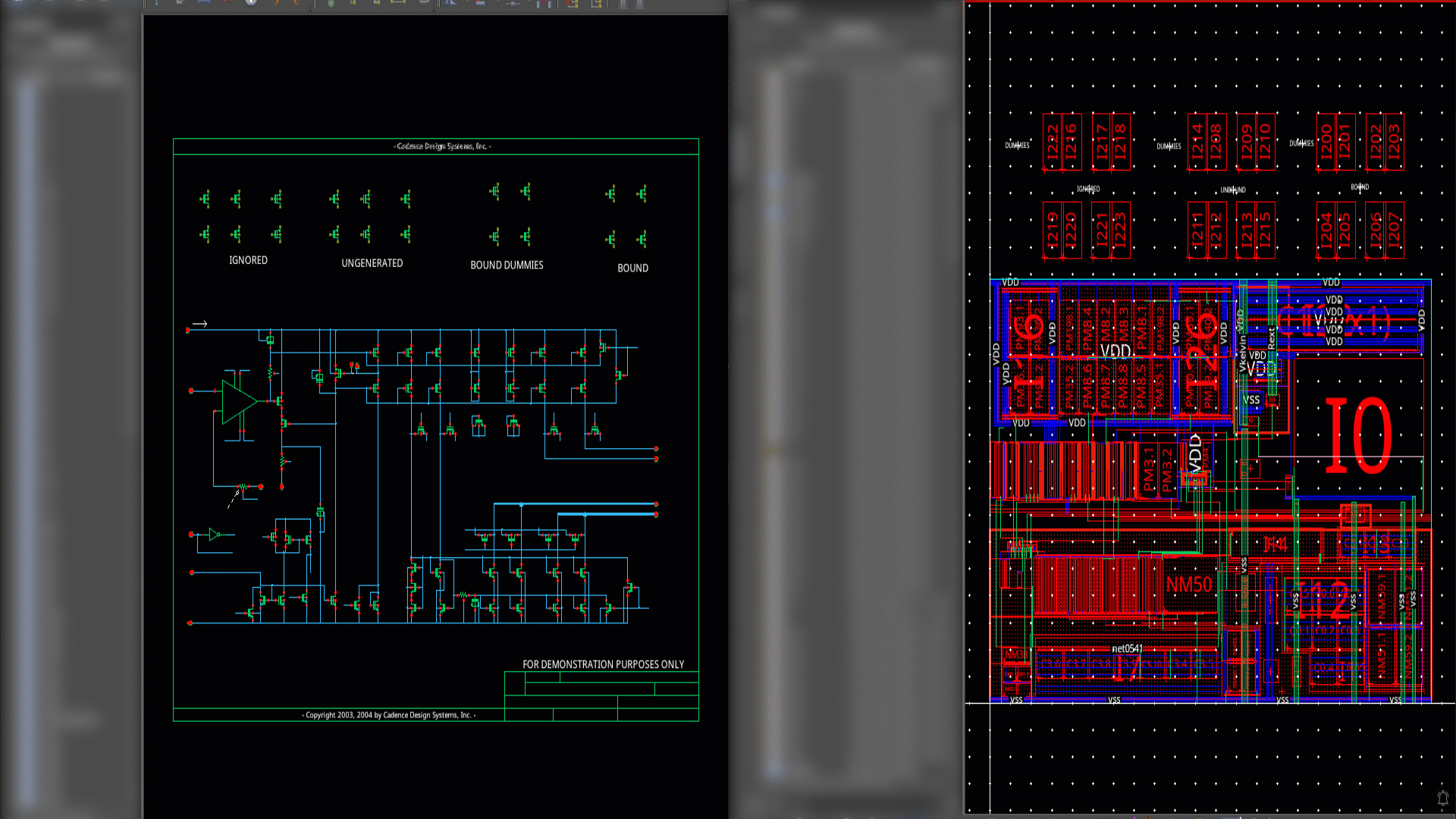

With this color-coded clarity, you instantly see what’s connected and what’s not. The best part? It’s dynamic; if an instance changes from bound to ignored, the color updates automatically. No refresh, no extra steps - your view always reflects the current design status (as shown in the graphical view below)

New in IC 25.1: Accelerate Your Binding Workflow

IC 25.1 transforms connectivity management with a streamlined approach that dramatically reduces clicks and complexity. Designers can now bind, unbind, and swap instance connections directly from schematic and layout views with minimal effort.

Things that used to take many steps now happen almost instantly, making work simpler, faster, and less repetitive. With these enhancements, you’ll spend less time on manual operations and more on creative design - efficiency is now at your fingertips.

Why Designers Like this Color Mapping?

Imagine working on a design with hundreds of instances. Instead of endless checks, just enable Bind Color Map - and instantly see connectivity status: bound, unbound, or ignored, all color-coded for clarity. It saves time, reduces errors, and gives you confidence in your design. Work smarter and faster with Bind Color Map.

Conclusion
Bind Color Map in Virtuoso Studio is more than just a visualization tool - it’s a productivity booster. With intuitive color coding and powerful binding commands, you can work faster and with greater confidence.

Therefore, try the bind color map today and save time for tomorrow to boost the productivity of your design !!!
