Modern RF and microwave design has no shortage of S-Parameter data, but extracting meaningful insights from that data often requires additional simulations, custom scripts, or manual calculations.

That’s exactly the problem S-Parameter assistant in Virtuoso Visualization and Analysis XL is designed to solve.

The S-Parameter assistant allows you to load Touchstone (.snp) files and instantly visualize the S-Parameter behavior using the Smith chart. It also automatically derives key electrical characteristics, including inductance (L), resistance (R), capacitance (C), quality factor (Q), and other frequency-dependent metrics—helping you move from raw data to real understanding in no time.

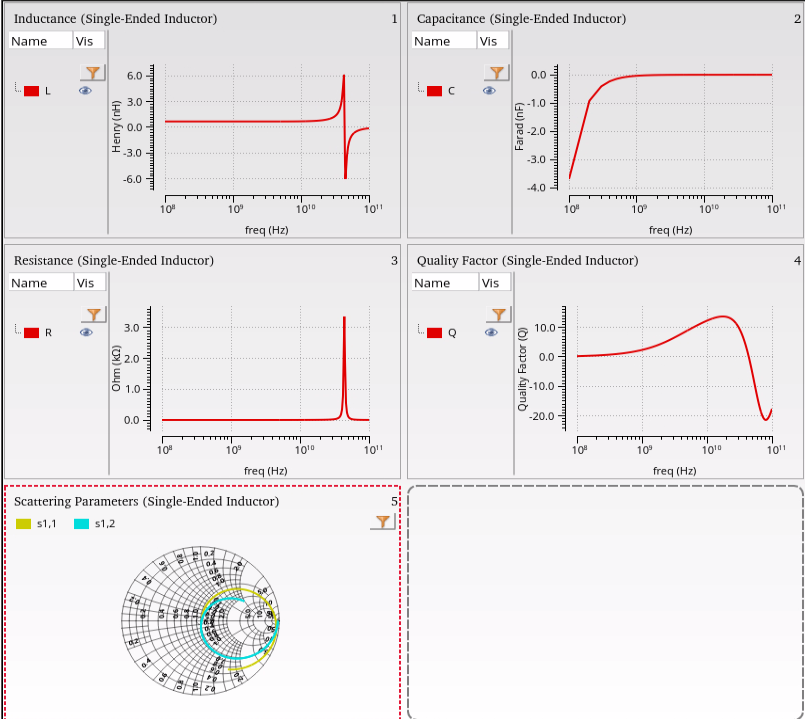

The following figure shows L, R, C, Q, and S-Parameters of a single-ended inductor in a two-port network, plotted using data extracted from a .s2p file.

Simplifying Analysis of Passive Components

Modern modules and substrates often contain passive components embedded within large, multiport S-Parameter networks. Analyzing individual elements such as inductors from these datasets can be difficult, requiring you to manually identify terminals, isolate the component, and extract meaningful electrical characteristics.

The S-Parameter assistant simplifies this process by allowing you to select the ports associated with a specific component while automating the rest. It isolates and de-embeds the selected element from the surrounding network, then generates plots such as inductance, impedance, and quality factor (Q). This eliminates tedious manual processing and makes it easy to verify the performance of embedded passive components, even within complex multiport designs.

How to Use S-Parameter Assistant

Using the S-Parameter assistant is straightforward:

1. Load a Touchstone format-based S-Parameter (.snp) file.
2. Specify the Device Type options—Category and Device.
3. Choose the electrical and S-Parameters you want to plot.

The assistant does the rest, presenting the results through intuitive visualizations that help you quickly understand device performance and make informed design decisions.
