Project Frequency Options Sweep in AWR MWO while simulating is not changing

BM202407317753 over 1 year ago

Hi,

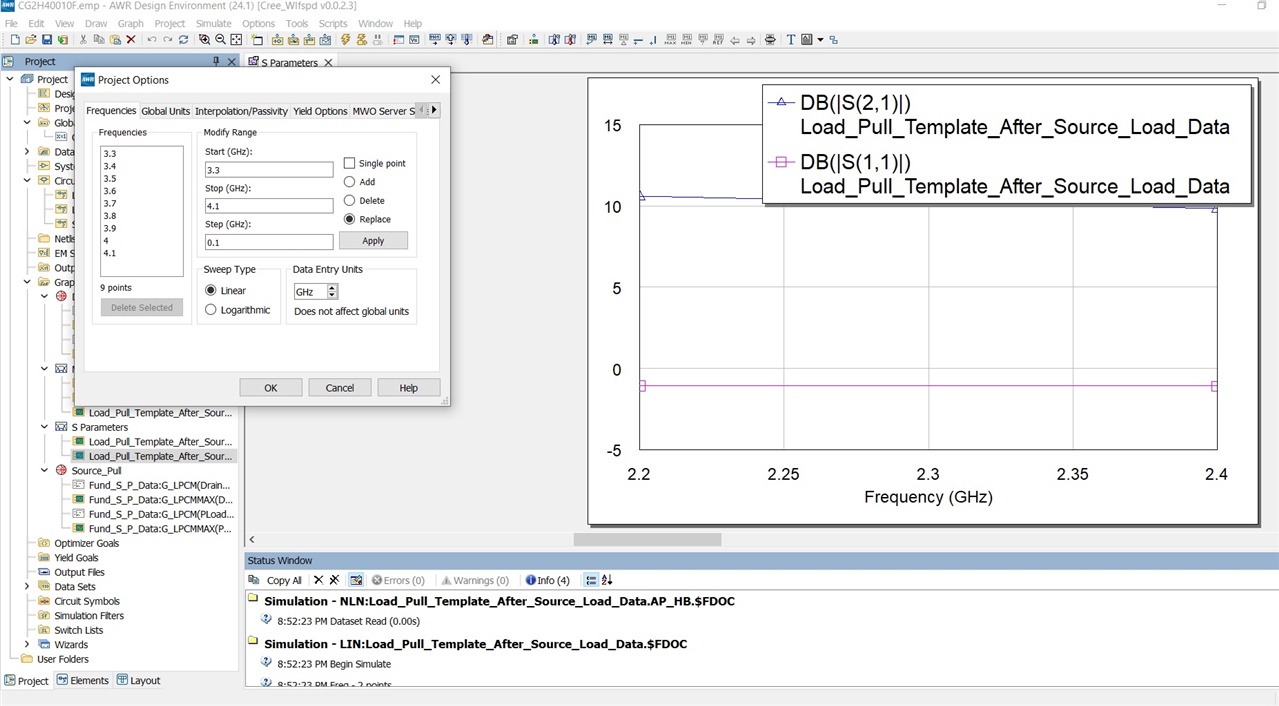

I have set frequency fsweep rom 3.3 to 4.1 GHz using Project Option frequency. When I simulated I am getting different frequency sweep from 2.2 to 2.4 GHz. I have tried many time, but I couldn't get frequency from 3.3 to 4.1 GHz. Please someone can hep me how to get frequency from 3.3 to 4.1 GHz Sweep while simulating.

OscPn over 1 year ago

May be Circuit Schematic not set "Use project defaults".

Further, I suggest you contact customer support (submit a support case after logging in) - that way an Application Engineer in our team can look at this together with you.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
BM202407317753 over 1 year ago in reply to OscPn

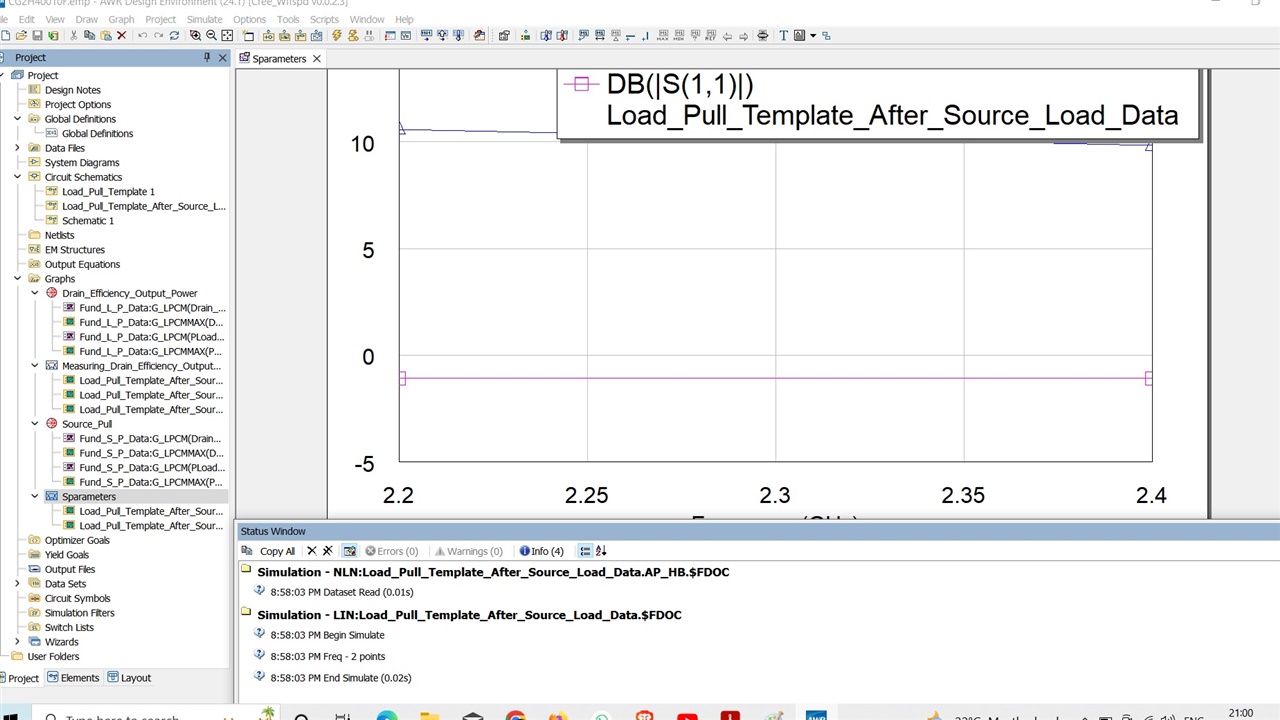

Change .txt file to.emp. Then you can open file using AWR MWO and look into problem of SParameter graph. Though I have global frequency option into 3.3 to 4.1 GHz. When I opened Graph S- Parameters and it starts plotting 2.2 to 2.4 GHz.CG2H40010F_Modi.txt
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
OscPn over 1 year ago in reply to BM202407317753

You need to select the "Use Project Defaults" for the "Load_Pull_Template_After_Source_Load_Data" schematic
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
