Ploting schematic without showing component parameters

Hello everybody

I´m trying to plot my schematic at virtuoso schematic editor but I don not want to plot the component parameters. This is a plot for documentation purposes and it get a little confuse to see with a lot of infomation right next each transistor. How can I take off the component parameters to plot the schematic ?

thanks

rickrevolta

BaaB over 5 years ago in reply to Andrew Beckett

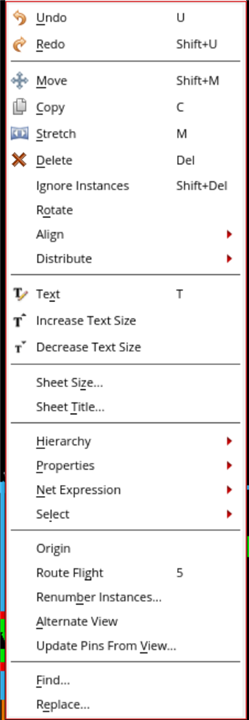

I don't see Edit -> Component Display anywhere. Is it removed?
Cancel
Vote Up 0 Vote Down

Cancel
Andrew Beckett over 5 years ago in reply to BaaB

Please don't post on 10 year old threads (see the Forum Guidelines).

The old, horrible, Edit->Component Display form was replaced in IC616 with View->Annotations->Setup, which fixes most of the problems with that flow and has a lot more powerful control over the annotations.

See Result Annotation Flow Enhancement in Virtuoso (Video) and Results Annotation flow in ADE Assembler

Andrew.
Cancel
Vote Up +1 Vote Down

Cancel
