How transient operating point is calculated in cadence

prashu
prashu over 13 years ago

 When performing transient analysis with cadence my input is changing and accordingly its operating point should change but when i see its transient operating point than it only show one region throughout the transient analysis please expalin

  • Cancel
  • Andrew Beckett
    Andrew Beckett over 13 years ago

    Bit hard to read (probably you were using Chrome, which doesn't work well with the forum).

    Anyway, my guess is that you're using spectre from IC5141, not from an MMSIM stream (in other words, a really old one). If using the old front end to spectre, you need to omit the quotes from the infoname value. i.e. put infoname=capInfo_dc rather than infoname="capInfo_dc" . If you miss out the quotes, it should work in IC5141 spectre and MMSIMXX.

    Using such an old version of spectre is not a good idea... it's not been touched in years.

    Andrew.

    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
  • imagesensor123
    imagesensor123 over 13 years ago
    Hi Andrew, yes, you are right. indeed, i use the spectre from ic5141, and as you suggested above, i changed the infoname,and it works well now,i can see the node capacitance in the output log file, but i can't use the results->print->capacitance table or plot the capacitance versus time from the results browser. there is no cap info in the results. did i miss some options?
    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
  • imagesensor123
    imagesensor123 over 13 years ago

    Hi Andrew,

    here is the new analysis statements:

    simulatorOptions options reltol=100e-6 vabstol=1e-6 iabstol=1e-12 temp=27 \
        tnom=27 homotopy=all limit=delta scalem=1.0 scale=1.0 \
        compatible=spice2 gmin=1e-12 rforce=1 maxnotes=5 maxwarns=5 digits=5 \
        cols=80 pivrel=1e-3 ckptclock=1800 sensfile="../psf/sens.output" \
        checklimitdest=psf
    dcOp dc write="spectre.dc" save=all maxiters=150 maxsteps=10000 \
        annotate=status
    capInfo_dc info what=captab where=logfile threshold=0.0 detail=node \
        sort=name
    dcOpInfo info what=oppoint where=rawfile
    tran tran stop=30m errpreset=conservative step=1n ic=dc write="spectre.ic" \
        writefinal="spectre.fc" annotate=status save=all oppoint=rawfile \
        maxiters=5 infoname=capInfo_dc infotimes=[3m 7m 11m]
    finalTimeOP info what=oppoint where=rawfile
    modelParameter info what=models where=rawfile
    element info what=inst where=rawfile
    outputParameter info what=output where=rawfile
    designParamVals info what=parameters where=rawfile
    primitives info what=primitives where=rawfile
    subckts info what=subckts  where=rawfile
    save MCOLUMNAMP:d MCOLUMNAMP:g Pixel0.MSELECT:d Pixel0.MSELECT:s
    saveOptions options save=all currents=selected



    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
  • Andrew Beckett
    Andrew Beckett over 13 years ago

    Zfeng,

    I just tried this with spectre from IC5141, and the problem is that spectre does not save the results correctly (the actual data seems to be missing). I ran in IC5141 with spectre from MMSIM10.1 - and then it all worked perfectly.

    So the solution is to not use an (almost) 8 year old version of the simulator, but to use something more recent.

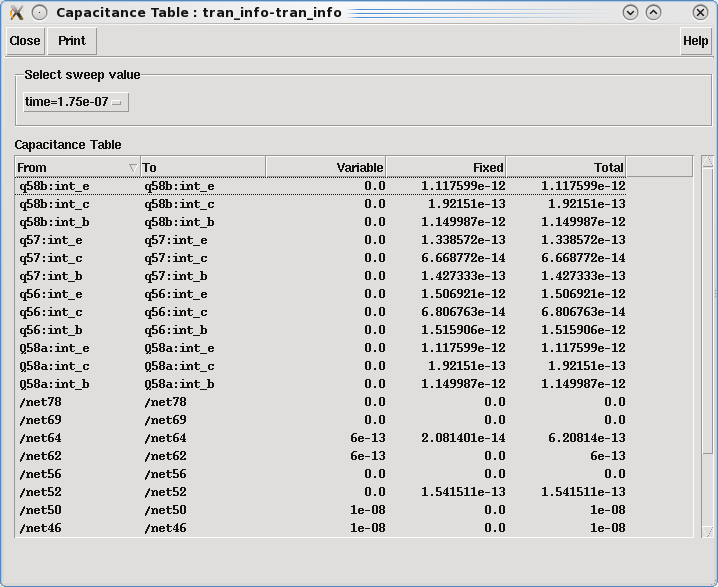

    See this picture of printing the capacitance table in IC5141.

    Andrew.



    • printCapTab.png
    • View
    • Hide
    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
  • imagesensor123
    imagesensor123 over 13 years ago
    Hi Andrew, thanks for checking this for me. and as you mentioned before, we can save the capacitance table into a file from spectre, and now, i want to plot these data in format of curves, so is it possible? is there some skill function can read the data perfectly and plot it as a curve. By the way, the data is arranged just as the capacitance table in your printing picture.
    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
  • Andrew Beckett
    Andrew Beckett over 13 years ago

    Zfeng,

    Use Tools->Results Browser, and then expand the tran_info-tran_info results. You'll see results of the form "net1 : net2" (where the two may be the same - depends on the captab options you chose). If you click on these and expand, you'll see three entries Fixed, Total and Variable (say), and you can then either plot these or  send to the calculator. That might generate an expression such as:

     getData("net50 : net50:Fixed" ?result "tran_info-tran_info")

    If you plot this, it will be versus the timepoints in your infotimes parameter.

    The above was with wavescan as the waveform tool. If you're using AWD, you'd expand tran_info-tran_info and then click on sweepVariable, which will show "time". If you then click on one of the time points, and then go to the net pair name, click on that to see Fixed/Total/Variable, and then use the Middle Mouse button and pick "Expression" - you'll end up with an expression in the calculator such as:

     pv( "net62 : net62" "Total" ?result "tran_info-tran_info" ?resultsDir "/export/home/andrewb/demos/SpectreRF/simulation/ne600/spectre/schematic" )

    (You could omit the ?resultsDir if it's the current results).

    Either the pv() form or the getData() form will work in either calculator/waveform tool.

    Regards,

    Andrew.

    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
  • imagesensor123
    imagesensor123 over 13 years ago

     Hi Andrew,

        great, thanks a lot!



    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
<
