Plot large signal conversion ratio of a simple dc-dc converter

BaaB

I would like to plot large signal conversion ratio of a simple dc-dc converter such as boost converter. How can I do this?

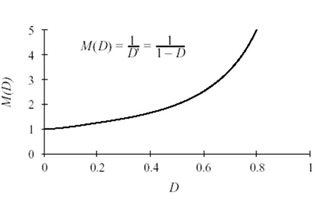

The plot should be something like the picture. Thanks.

Parents
  • Andrew Beckett

    You might be able to use the information in my app note. That talks about simulating DC to DC converters using SpectreRF - and maybe you could sweep the duty cycle.

    Regards,

    Andrew

  • BaaB
    in reply to Andrew Beckett

    Thank you very much, Andrew.

    Reading that app note, I am still not sure if PSS can be used to plot the conversion ratio with duty cycle as the picture above. I tried another method that set duty as a variable and then run parametric the duty variable in transient analysis and plot conversion ratio M =  Vout/Vin.
    With this I got a set of curves Vout/Vin with time for different duty cycle. However, there are some problems.

    First, I only want to calculate conversion ratio M = Vout/Vin at steady state and transient period. Second, I would like to plot duty cycle as X axis not time.

    Could you give me some advice?

Reply
  • BaaB
    in reply to Andrew Beckett

    Thank you very much, Andrew.

    Reading that app note, I am still not sure if PSS can be used to plot the conversion ratio with duty cycle as the picture above. I tried another method that set duty as a variable and then run parametric the duty variable in transient analysis and plot conversion ratio M =  Vout/Vin.
    With this I got a set of curves Vout/Vin with time for different duty cycle. However, there are some problems.

    First, I only want to calculate conversion ratio M = Vout/Vin at steady state and transient period. Second, I would like to plot duty cycle as X axis not time.

    Could you give me some advice?

Children
No Data
