Change the plot background to White

Sometimes, I want to take a screen shot of the plot in cadence for documentations. Black background is not clear after taking the screen shot. I can change it to white background. But when I change to a new plot, I have to set it again.

I am wondering if there is a way to set the default plot background to white so that all my plot back ground will be white.

ShawnLogan over 5 years ago

Dear Ocean,

Did you happen to see this reply from Andrew regarding the background color?

community.cadence.com/.../1368448

Andrew suggests the background default can be set using the following:

envSetVal("viva.graphFrame" "background" 'string "white")

in your .cdsinit file.

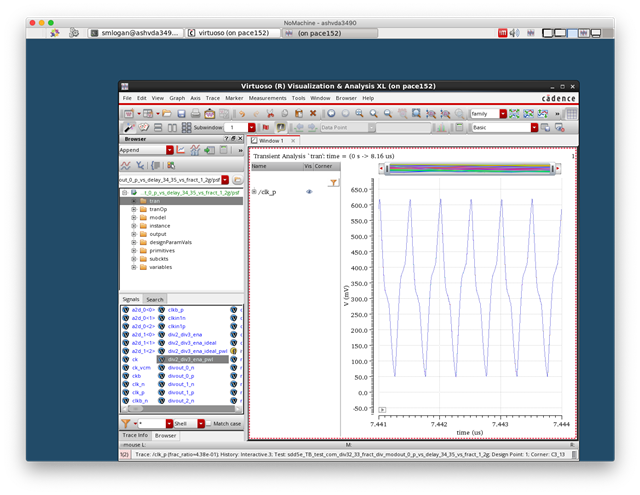

I started a new Virtuoso session, launched ViVAXL and opened a data base to plot a waveform and noticed the background color was now changed from my default of "calc" to "white".

Shawn

s
Cancel
Vote Up 0 Vote Down

Cancel
FormerMember over 5 years ago in reply to ShawnLogan
Cancel
Vote Up 0 Vote Down

Cancel
Pecman over 5 years ago

It works now. Thanks a lot!
Cancel
Vote Up 0 Vote Down

Cancel
ShawnLogan over 5 years ago in reply to Pecman

Dear Pecman,

Excellent! Thank you for letting us know!

Shawn
