How to save inherited pin current in ADE Assembler using AMS simulator

LukeAndrew
LukeAndrew over 4 years ago

I use inherited connections with explicit inherited pins in my design.
I am able to select these pins after selecting "To be saved..." in ADE Assembler outputs as usual.
When I simulate the circuit using Spectre simulator, currents flowing through these pins are saved as expected.

The problem occurs when I switch to ADE Assembler with AMS simulator (ADE Assembler + AMS + OSS-based netlister with irun).

Despite having set the option: "Save terminal currents: selected" and selecting these explicit inherited pins, nothing gets plotted when I try it. I get warnings like this:
Warning no "IT" data for node "/DUT/vddd"

However, I do not get such warning when I save and plot the current of standard pin. In such case everything gets saved and plotted properly.

I attach several screenhots with symbol and schematic fragments as well as settings.

UPDATE: I grepped the results folder using the name of one of the pins.

It seems that the software tries to add the probe, but there is an error.

*E,DBOBBD: Cannot create SHM probe for TOP_test.DUT.vdddb

Any help will be appreciated. Unfortunately, I have not found anything relevant in documentation, on the forum or Google.

Regards,
Lukasz

-----------------


I use the following software versions:
"@(#)$CDS: virtuoso version 6.1.7-64b 09/27/2016 19:46 (sjfhw302) $"
"sub-version  IC6.1.7-64b.500.7 "
MMSIM15.10.803
XCELIUM18.09

Symbol (fragment with explicit inherited pins):

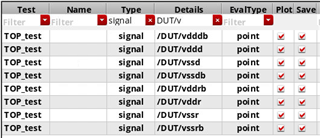

Outputs (inherited pin current signals):

Save options (current: selected)

The exact search grep result is below:

egrep -r 'DUT.vdddb' .

./1/TOP_test/netlist/probe.tcl:probe -create -emptyok -database ams_database -flow {TOP_test.DUT.vdddb}
./1/TOP_test/psf/irun.log:xcelium> probe -create -emptyok -database ams_database -flow {TOP_test.DUT.vdddb}
./1/TOP_test/psf/irun.log:xmsim: *E,DBOBBD: Cannot create SHM probe for TOP_test.DUT.vdddb.
./1/TOP_test/psf/irun.err:xcelium> probe -create -emptyok -database ams_database -flow {TOP_test.DUT.vdddb}
./1/TOP_test/psf/irun.err:xmsim: *E,DBOBBD: Cannot create SHM probe for TOP_test.DUT.vdddb.
./1/TOP_test/psf/Job.log:\o ERROR (WIA-1006): Unable to plot expression <IT("/DUT/vdddb")>
./psf/TOP_test/netlist/probe.tcl:probe -create -emptyok -database ams_database -flow {TOP_test.DUT.vdddb}
./psf/TOP_test/psf/irun.log:xcelium> probe -create -emptyok -database ams_database -flow {TOP_test.DUT.vdddb}
./psf/TOP_test/psf/irun.log:xmsim: *E,DBOBBD: TOP_test.DUT.vdddb.

Tran options (nothing special here):

Pins on the schematic of the DUT (nothing special here):
