Results Display Window

shaarawy2023
shaarawy2023 over 3 years ago

how to show specific parameter in the Results Display Window instead of showing all the parameter (i.e. i want to display only cgs, region, gm, id and vds)

  • Cancel
Parents
  • ShawnLogan
    ShawnLogan over 3 years ago

    Dear shaarawy2023,

    shaarawy2023 said:
    how to show specific parameter in the Results Display Window instead of showing all the parameter (i.e. i want to display only cgs, region, gm, id and vds)

    If you are only interested in the four parameters you indicate, is there a speciifc reason you do not want to define these operating point parameters as distinct outputs in order that you can print or view them after a simulation? There are a number of ways to do this in ADE Explorer/Assembler. Fro example, there is a video at URL:

    https://support.cadence.com/apex/ArticleAttachmentPortal?id=a1O3w000009yCkQEAU

    and a companion Troubleshooting article at URL:

    https://support.cadence.com/apex/ArticleAttachmentPortal?id=a1Od0000000urgbEAA&pageName=ArticleContent&id=a1Od0000000urgbEAA&oMenu=Documents%20which%20may%20be%20similar%20to%20this%20document

    You could also just print all the parameters to an external file and use UNIX tools (awk, sed, grep) to filter the file. To print the operating points to a file, please see the last section of the Cadence presentation at URL:

    https://support.cadence.com/apex/ArticleAttachmentPortal?id=a1O0V0000090teVUAQ&pageName=ArticleContent

    I hope this helps shaarawy2023!

    Shawn

    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
  • Andrew Beckett
    Andrew Beckett over 3 years ago in reply to ShawnLogan

    Further to Shawn's suggestions, it's not really possible to directly do this via the Results Display Window, but with a bit of SKILL code you can do with provided you don't mind manually editing an expression.

    First of all, put the code below in a file (e.g. abOP.il) and then load in the CIW or .cdsinit: load("abOP.il")

    Then use Results→Print→DC Operating Points and select the instance you want. You'll get all of the parameters shown in the window.

    Next in the Results Display Window, use Expressions→Edit and select the entry with the expression - for example:

    OP("/I7/M1" "??")

    and change this to:

    abOP("/I7/M1" "cgs" "region" "gm" "id" "vds")

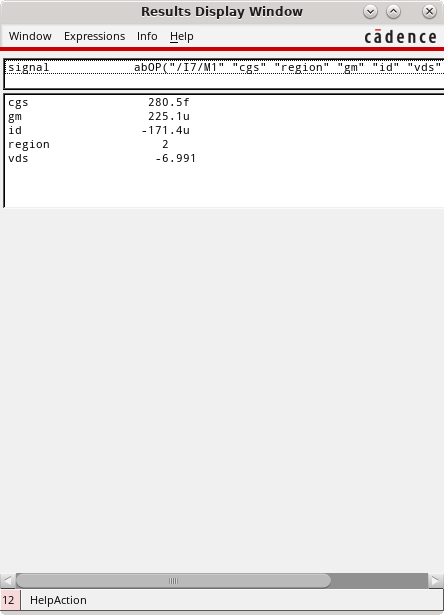

    Press the "change" button, and then you should get:

    Here's the SKILL code:

    /* abOP.il

    Author     A.D.Beckett
    Group      Custom IC (UK), Cadence Design Systems Ltd.
    Language   SKILL
    Date       Jul 30, 2022
    Modified
    By

    Produce an output similar to OP(instName "??") but with a specified
    list of parameters only, rather than all. Useful with ocnPrint
    or the results print window in ADE

    abOP("/I7/M1" "gm" "gds" "id" "ids")

    ***************************************************

    SCCS Info: @(#) abOP.il 07/30/22.17:43:44 1.1

    */

    /***************************************************************
    *                                                              *
    *                 abOP(instName @rest params)                  *
    *                                                              *
    *  Similar to OP() except can give multiple parameter names.   *
    *   Returns an output similar to OP(instName "??") but with    *
    *       only the specified subset of parameters included       *
    *                                                              *
    ***************************************************************/

    procedure(abOP(instName @rest params)
      unless(params params=list("??"))
      ; cope with a list of parameters being passed or multiple individual
      ; arguments
      params=foreach(mapcan param params
        if(listp(param) then
          copy(param)
        else
          list(param)
        )
      )
      cond(
        ;--------------------------------------------------------------------
        ; If an instance name is passed, call OP with all parameters and
        ; then recursively call this function with the resulting waveform
        ;--------------------------------------------------------------------
        (stringp(instName)
          let((wave)
            if(car(params)=="??" then
              OP(instName "??")
            else
              wave=abOP(OP(instName "??") params)
              famSetExpr(wave `abOP(,instName ,@params))
              wave
            )
          )
        )
        ;--------------------------------------------------------------------
        ; If a waveform, then filter out just the matching parameter
        ; names - creating a new waveform
        ;--------------------------------------------------------------------
        (drIsWaveform(instName)
          let(((paramTable makeTable('paramTable nil))
              xVec yVec newXVec newYVec len)
            foreach(param params
              paramTable[param]=t
            )
            xVec=drGetWaveformXVec(instName)
            yVec=drGetWaveformYVec(instName)
            newXVec=drCreateVec(drType(xVec) length(paramTable))
            newYVec=drCreateVec(drType(yVec) length(paramTable))
            len=drVectorLength(xVec)
            for(i 0 len-1
              when(paramTable[drGetElem(xVec i)]
                drAddElem(newXVec drGetElem(xVec i))
                drAddElem(newYVec drGetElem(yVec i))
              )
            )
            drCreateWaveform(newXVec newYVec)
          )
        )
        ;--------------------------------------------------------------------
        ; Handle swept data
        ;--------------------------------------------------------------------
        (famIsFamily(instName)
          famMap('abOP instName params)
        )
        (t
          error("abOP: can't handle %L\n" instName)
        )
      )
    )



    Regards,

    Andrew

    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
Reply
  • Andrew Beckett
    Andrew Beckett over 3 years ago in reply to ShawnLogan

    Further to Shawn's suggestions, it's not really possible to directly do this via the Results Display Window, but with a bit of SKILL code you can do with provided you don't mind manually editing an expression.

    First of all, put the code below in a file (e.g. abOP.il) and then load in the CIW or .cdsinit: load("abOP.il")

    Then use Results→Print→DC Operating Points and select the instance you want. You'll get all of the parameters shown in the window.

    Next in the Results Display Window, use Expressions→Edit and select the entry with the expression - for example:

    OP("/I7/M1" "??")

    and change this to:

    abOP("/I7/M1" "cgs" "region" "gm" "id" "vds")

    Press the "change" button, and then you should get:

    Here's the SKILL code:

    /* abOP.il

    Author     A.D.Beckett
    Group      Custom IC (UK), Cadence Design Systems Ltd.
    Language   SKILL
    Date       Jul 30, 2022
    Modified
    By

    Produce an output similar to OP(instName "??") but with a specified
    list of parameters only, rather than all. Useful with ocnPrint
    or the results print window in ADE

    abOP("/I7/M1" "gm" "gds" "id" "ids")

    ***************************************************

    SCCS Info: @(#) abOP.il 07/30/22.17:43:44 1.1

    */

    /***************************************************************
    *                                                              *
    *                 abOP(instName @rest params)                  *
    *                                                              *
    *  Similar to OP() except can give multiple parameter names.   *
    *   Returns an output similar to OP(instName "??") but with    *
    *       only the specified subset of parameters included       *
    *                                                              *
    ***************************************************************/

    procedure(abOP(instName @rest params)
      unless(params params=list("??"))
      ; cope with a list of parameters being passed or multiple individual
      ; arguments
      params=foreach(mapcan param params
        if(listp(param) then
          copy(param)
        else
          list(param)
        )
      )
      cond(
        ;--------------------------------------------------------------------
        ; If an instance name is passed, call OP with all parameters and
        ; then recursively call this function with the resulting waveform
        ;--------------------------------------------------------------------
        (stringp(instName)
          let((wave)
            if(car(params)=="??" then
              OP(instName "??")
            else
              wave=abOP(OP(instName "??") params)
              famSetExpr(wave `abOP(,instName ,@params))
              wave
            )
          )
        )
        ;--------------------------------------------------------------------
        ; If a waveform, then filter out just the matching parameter
        ; names - creating a new waveform
        ;--------------------------------------------------------------------
        (drIsWaveform(instName)
          let(((paramTable makeTable('paramTable nil))
              xVec yVec newXVec newYVec len)
            foreach(param params
              paramTable[param]=t
            )
            xVec=drGetWaveformXVec(instName)
            yVec=drGetWaveformYVec(instName)
            newXVec=drCreateVec(drType(xVec) length(paramTable))
            newYVec=drCreateVec(drType(yVec) length(paramTable))
            len=drVectorLength(xVec)
            for(i 0 len-1
              when(paramTable[drGetElem(xVec i)]
                drAddElem(newXVec drGetElem(xVec i))
                drAddElem(newYVec drGetElem(yVec i))
              )
            )
            drCreateWaveform(newXVec newYVec)
          )
        )
        ;--------------------------------------------------------------------
        ; Handle swept data
        ;--------------------------------------------------------------------
        (famIsFamily(instName)
          famMap('abOP instName params)
        )
        (t
          error("abOP: can't handle %L\n" instName)
        )
      )
    )



    Regards,

    Andrew

    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
Children
  • henker
    henker over 3 years ago in reply to Andrew Beckett

    The initial argument check

    if( listp(param) then
      copy(param)
    else
      list(param)
    )

    could be extended with e.g.

    cond(
      (listp(param)    copy(param))
      (stringp(param)  parseString(param))
      (t               list(param))
    )


    so you could additionally give all the parameters as single string e.g. abOP("/I7/M1" "cgs region gm id vds"), which might get usefull under certain circumstances.

    Regards,

    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
