pxf or pac sampled Explanation

Patrick Chang

 https://community.cadence.com/cadence_technology_forums/f/custom-ic-design/45055/explanation-for-sampled-pxf-analysis


>> from  sayed: it's still computing the time-averaged transfer function, but sampled at an instant in time.

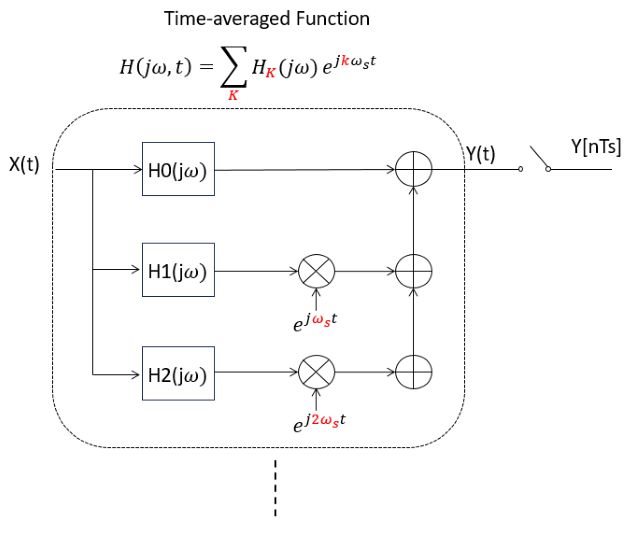

Is it liked below simplified graph ? add ideal sample at the output  of y(t).
