How to check if a coordinate of this rectangle is on that rectangle

Phuong Truong
Phuong Truong over 5 years ago

Dear all,

I'm new beginner. I want to compare 2 locations each other. Please help me on this.
Thanks a lot.

Example:

location A = ((0.00075 0.00525) (0.01025 0.00875))

location B = ((0.0125 0.00475) (0.0155 0.00775))

if location A in location B ==> pass

if location A not in location B ==> fail


  • Cancel
  • Phuong Truong
    Phuong Truong over 5 years ago

    2 locations is the same layer

    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
  • Phuong Truong
    Phuong Truong over 5 years ago

    Dear all,

    I am a new beginner. I want to check if a coordinate of rectangle A is on rectangle B.

    Have any simple example code for this? Any help is appreciated.


    Thanks a lot.

    Example:

    Rectangle A : ((1 2) (3 4))

    Rectangle B: ((2 2) (5 6))

    If coordinate of rectangle A is on rectangle B is pass.

    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
  • Andrew Beckett
    Andrew Beckett over 5 years ago in reply to Phuong Truong

    I merged your duplicate questions together to avoid confusion (the first one was not very clearly asked). What do you mean by "on"? Do you mean they overlap? Or do y ou mean that rectangle A is entirely inside B?

    Anyway, these two functions do what you want (I think - you should double check my logic as I threw this together and didn't check it thoroughly):

    procedure(CCFrectOverlap(rectA rectB)
      destructuringBind(((Allx Ally) (Aurx Aury)) rectA
        destructuringBind(((Bllx Blly) (Burx Bury)) rectB
          (Allx>=Bllx && Ally>=Blly && Allx<=Burx && Ally<=Bury) ||
          (Aurx>=Bllx && Aury>=Blly && Aurx<=Burx && Aury<=Bury)
        )
      )
    )

    procedure(CCFrectInside(rectA rectB)
      destructuringBind(((Allx Ally) (Aurx Aury)) rectA
        destructuringBind(((Bllx Blly) (Burx Bury)) rectB
          (Allx>=Bllx && Ally>=Blly && Allx<=Burx && Ally<=Bury) &&
          (Aurx>=Bllx && Aury>=Blly && Aurx<=Burx && Aury<=Bury)
        )
      )
    )


    Andrew

    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
  • Phuong Truong
    Phuong Truong over 5 years ago in reply to Andrew Beckett

    Hi Andrew,

    Thanks so much for your reply.

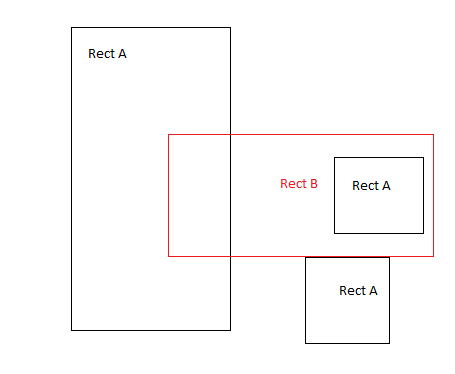

    I mean that rectangle A is entirely inside rectangle B or a part or an edges of rectangle B.

    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
