Creating Rectangle keep outs

vimaldevlpr over 4 years ago

Hi,

I want to create a "CUTOUT" Automatically by using skill program.

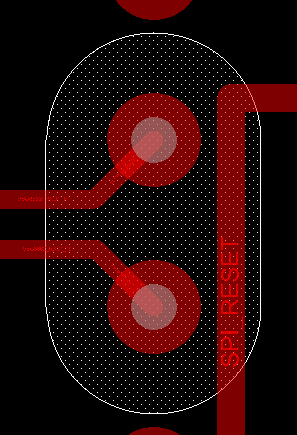

For creating circle keep out command is "axlPathStartCircle" and "axlDBCreateShape"

What is the commands to create these kind of CUTOUT ? any one please help me.

DavidJHutchins over 4 years ago

rtfm...

axlPathStart()

axlPathLine()

axlPathArcRadius()

axlPathLine()

axlPathArcRadius()

axlPathLine()

axlDBCreateShape()
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
luanvn81 over 4 years ago

Hi!

I think you can try as below

- create path start with your LW (ex 200) :  path = axlPathStart(list(via1->xy via2->xy) 200.0)

- Get poly from created r_path :   poly = car(axlPolyFromDB(path ?endCapType 'ROUND ?line2poly t))

- Create shape on your layer(Ex:ANTI ETCH/ALL ) : axlDBCreateShape(poly t "ANTI ETCH/ALL" nil nil)

Luan.
