How to expand/contract multiple voids at the same time?

Judeeeee
Judeeeee 5 months ago

Hi allegro experts!

Can you help me with this. Thanks!

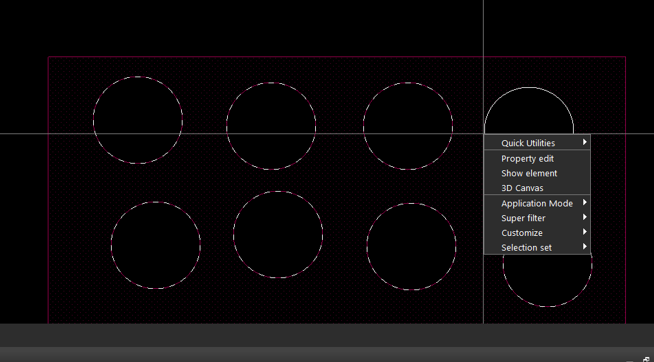

How to expand/contract multiple voids at the same time? is there script needed for this command?

  • Sign in to reply
  • Cancel
Parents
  • DavidJHutchins
    0 DavidJHutchins 5 months ago

    I wrote a simple skill routine to resize voids in static shapes ( it won't work on dynamic shapes )

    below is the skill code:

    procedure((resize_voids size)
    let((child parent VoidList oldPolys NewPolys AddPolys NewShp)
    if(or(fixp(size) floatp(size)) then
    (axlSetFindFilter ?enabled list("noall" "voids") ?onButtons list("noall" "voids"))
    (axlClearSelSet)
    (axlAddSelectBox)
    axlMsgPut("%d voids selected" length(axlGetSelSet()))
    when(axlGetSelSet()
    (child = car(axlGetSelSet()))
    (parent = child->parent)
    when(parent->parentGroups
    axlClearSelSet()
    axlMsgPut("Can not edit Voids in Dynamic Shapes")
    )
    (parent = nil)
    )
    when(axlGetSelSet()
    (VoidList = axlGetSelSet())
    (axlClearSelSet)
    foreach(dbid VoidList
    unless(parent
    (parent=dbid->parent)
    (NewShp = axlDBOpenShape(parent nil))
    )
    (oldPolys = axlPolyFromDB(dbid))
    ;axlMsgPut("%d oldPolys" length(oldPolys))
    (AddPolys = list())
    foreach(poly oldPolys
    (newPolys = axlPolyExpand(poly size 'none))
    foreach(new newPolys
    (AddPolys = cons(new AddPolys))
    )
    )
    ;axlMsgPut("%d newPolys" length(newPolys))
    axlShapeDeleteVoids(dbid)
    foreach(poly AddPolys
    axlDBCreateVoid(NewShp poly)
    )
    )
    axlDBCreateCloseShape(NewShp)
    )
    else
    axlMsgPut("input value was not an int or float")
    )
    )
    )

    Below are the commands in Allegro:

    skill 'load "resize_voids.ils"'

    skill 'resize_voids -1'

    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Verify Answer
    • Reject Answer
    • Cancel
Reply
  • DavidJHutchins
    0 DavidJHutchins 5 months ago

    I wrote a simple skill routine to resize voids in static shapes ( it won't work on dynamic shapes )

    below is the skill code:

    procedure((resize_voids size)
    let((child parent VoidList oldPolys NewPolys AddPolys NewShp)
    if(or(fixp(size) floatp(size)) then
    (axlSetFindFilter ?enabled list("noall" "voids") ?onButtons list("noall" "voids"))
    (axlClearSelSet)
    (axlAddSelectBox)
    axlMsgPut("%d voids selected" length(axlGetSelSet()))
    when(axlGetSelSet()
    (child = car(axlGetSelSet()))
    (parent = child->parent)
    when(parent->parentGroups
    axlClearSelSet()
    axlMsgPut("Can not edit Voids in Dynamic Shapes")
    )
    (parent = nil)
    )
    when(axlGetSelSet()
    (VoidList = axlGetSelSet())
    (axlClearSelSet)
    foreach(dbid VoidList
    unless(parent
    (parent=dbid->parent)
    (NewShp = axlDBOpenShape(parent nil))
    )
    (oldPolys = axlPolyFromDB(dbid))
    ;axlMsgPut("%d oldPolys" length(oldPolys))
    (AddPolys = list())
    foreach(poly oldPolys
    (newPolys = axlPolyExpand(poly size 'none))
    foreach(new newPolys
    (AddPolys = cons(new AddPolys))
    )
    )
    ;axlMsgPut("%d newPolys" length(newPolys))
    axlShapeDeleteVoids(dbid)
    foreach(poly AddPolys
    axlDBCreateVoid(NewShp poly)
    )
    )
    axlDBCreateCloseShape(NewShp)
    )
    else
    axlMsgPut("input value was not an int or float")
    )
    )
    )

    Below are the commands in Allegro:

    skill 'load "resize_voids.ils"'

    skill 'resize_voids -1'

    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Verify Answer
    • Reject Answer
    • Cancel
