how to copy a part of design

Question

Hello,

 I&rsquo;ve designed a PCB prototype, but the final version will have a different board size. I've already completed the routing for key components like the CPU and RAM. Is it possible to copy those sections into the new PCB layout to avoid redoing the routing?

 Regards,

andakConsultingLtd · Accepted Answer

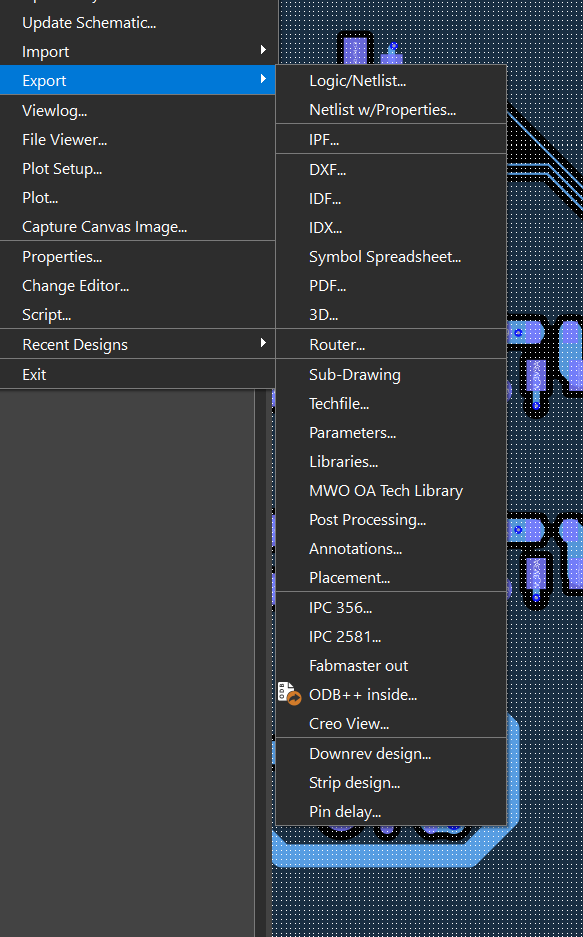

Try Export->Sub-Drawing, looks like you have a different GUI (it happens due to Licensing and version)

andakConsultingLtd · Answer

Yes, it is and you have 2 options:
 1. Use Export->Clipboard feature
 2. Use replicate modules available in Placement Mode

andakConsultingLtd · Answer

On #2 you need a minimum OrCAD professional License to do this (note: it might be different on yourGUI),

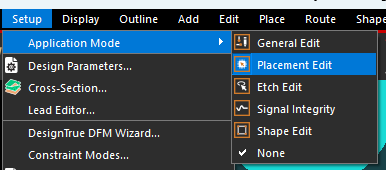

 In the original design, enter placement mode:

 This will allow you to select Symbols without being in a command

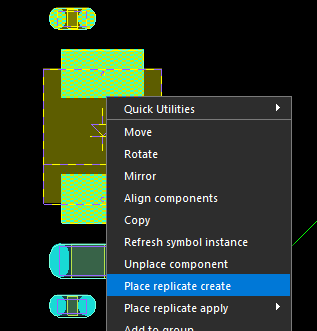

 Select the group you'd like to replicate and right click on it and select Place Replicate Create

 Select additional items like traces/shapes/vias, right click Done and select origin. Save it as a module when prompted

 In the Destination, enter the placement mode, select the components you'd like to apply this to and right click, selecting Place Replicate Apply and the module name.

 Eventually, break the module by selecting Groups from the filter in place mode, select the group, right click and then Disband Group.

excellon1 · Answer

Hi.
 There are a number of ways to do this. The easiest method since you also have a schematic is to save out your existing design under a new name.
 Remove what you do not need from your schematic and run a netlist. Update the new board with updated netlist so as to align both schematic and pcb.
 The result will be you have a starter board for your new project.
 Resize the board outline shape to the new board size you need.
 Best Regards.

andakConsultingLtd · Answer

not if you tick a few more options when exporting the subdrawing like shown below:
