Missing 3D Icon

QI202602231047

Hi,

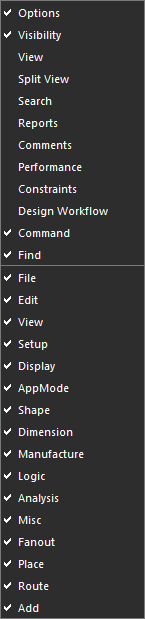

I'm using OrCAD X PCB  Designer on 25.1 with the path S010 and the 3D icon (Not the 3D Canva icon) is missing, I have check all the icon in the menu but i still don't have the 3D icon.

Parents
  • JuanCR
    0

    Hello! Can you share a screenshot of your About > Help screen?

  • JuanCR
    0 in reply to QI202602231047

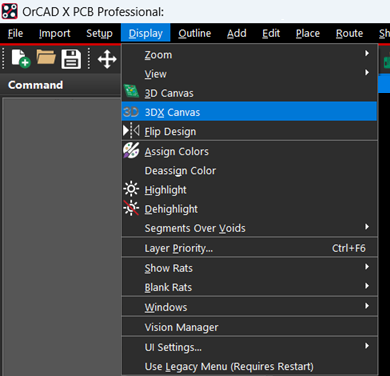

    If you go to this menu, do you have the option to start 3DX Canvas?

  • QI202602231047
    0 in reply to JuanCR

    This problem is only when I'm editing a .dra

    But when i'm editing a .brd I got it.

Reply
  • QI202602231047
    0 in reply to JuanCR

    This problem is only when I'm editing a .dra

    But when i'm editing a .brd I got it.

Children
  • JuanCR
    0 in reply to QI202602231047

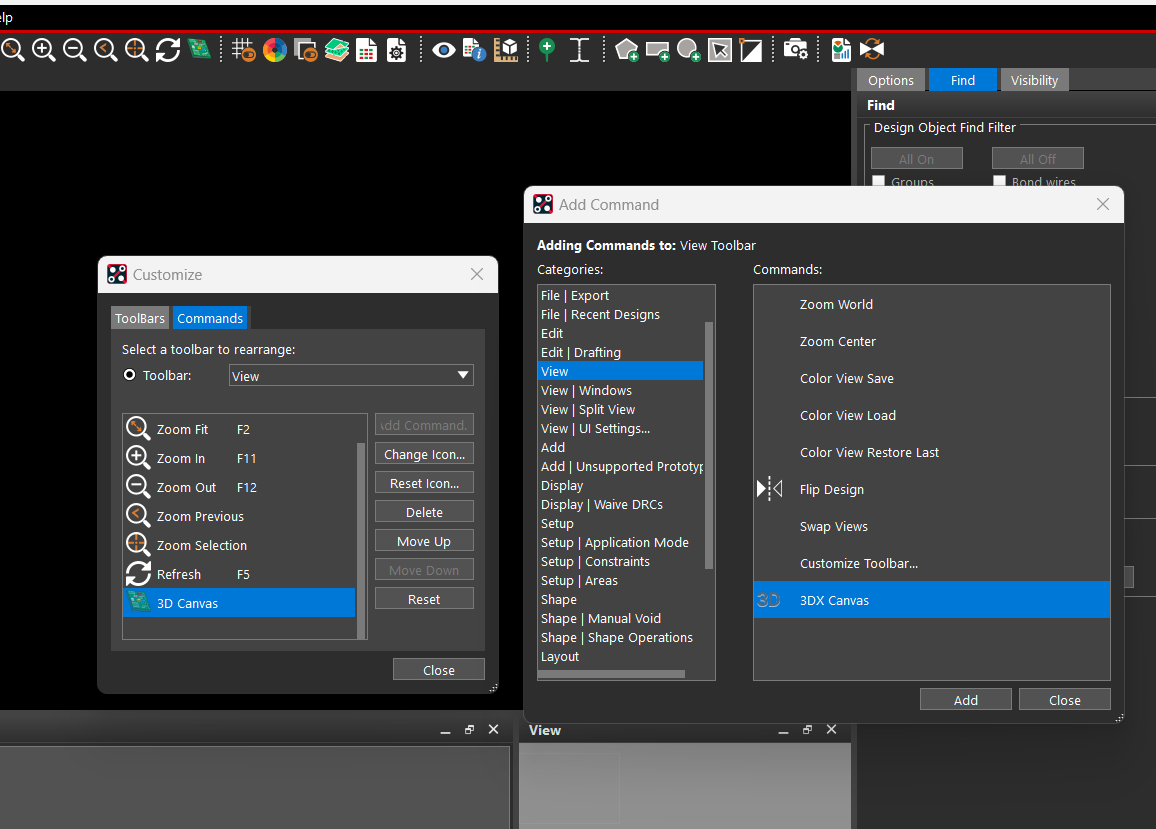

    Go to View > Customize Toolbar and navigate to this screen:

    So, it's the Commands Tab, then choose the toolbar "View". You should see that the last command is "3D Canvas" (missing 3DX canvas). Click on "Add command" button. Then, in the pop up window, choose "View" and find the "3DX Canvas" command.

    I'm not sure why you don't have this command visible but the only thing I can think of is that it was deleted by mistake. Let me know if you have any issues following my steps.
