Allegro skill film domain visibility value

Dave413

Hi,

I have a skill routine that I'd like to loop through the film files listed in Allegro's visibility panel view drop down list.

Currently to get the list of film files I'm using axlGetParam("artwork")->groupMembers

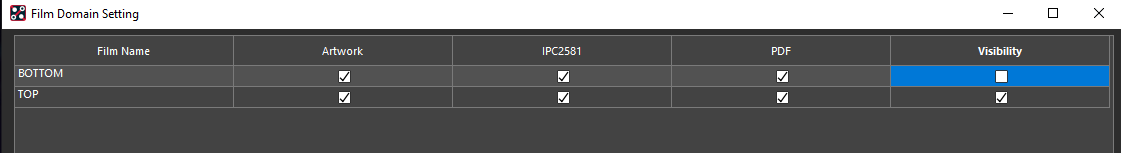

The issue is that the film file list also includes those that are toggled off for visibility in Film Domain Settings(see image below)

In an attempt to find artwork visibility value, I used axlPrintDbid which has visibility under Domains but it seems to be dead end (see below)

Any help is much appreciated

Thanks,

David Nguyen

example axlPrintDbid on artwork object:

c objType artwork
c name XXXXXXXX

a domains ("ipc2581" "pdf" "artwork" "visibility")
a groupMembers ("PACKAGE GEOMETRY/SILKSCREEN_BOTTOM" "DRAWING FORMAT/GBR_SS_PN" "DRAWING FORMAT/GBR_SS_SH2" "BOARD GEOMETRY/SILKSCREEN_BOTTOM")
a offset (0.0 0.0)
a rotation 0
a sequence 23
a shapeBoundingBox 0.0
a undefineLineWidth 5.0
a vectorBasedPad t
