Putting track problems on the corner of the chamfering?????

Hi..

I had routed the sample board and then when i am trying to slide the track means that time the corner of the tracks is been cutout. i don't what is the problem for that?

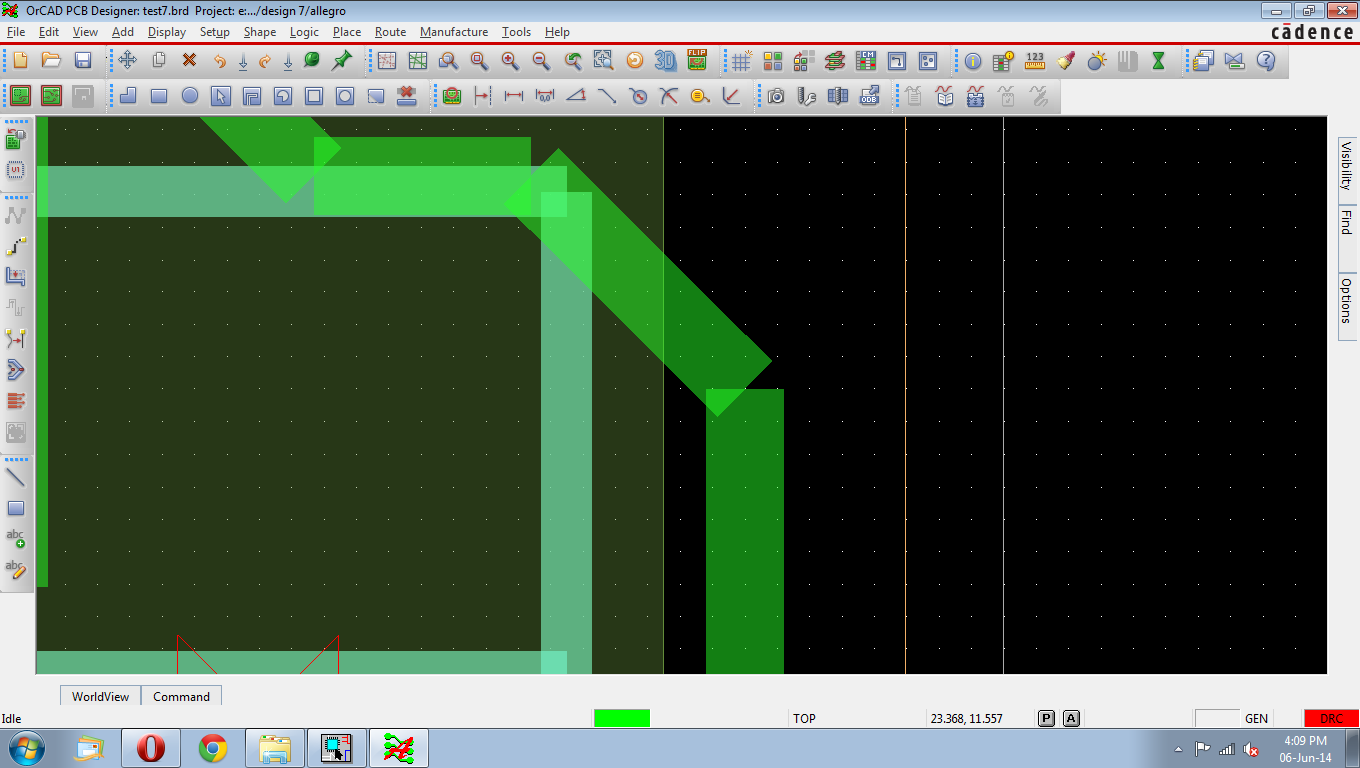

I had attached the png image with this post. tell the possible solution to avoid this problem.

Thanks & Regards From,

Dhamodharan

steve over 11 years ago

Look at Setup - Design Parameters, display tab and turn on Connect Line endcaps.
Cancel
Vote Up 0 Vote Down

Cancel
Dhamodharann over 11 years ago

Thanks Steve... Your answer is useful to me... Thanks & Regards Dhamodharan
