Nc Drill Table to large for page

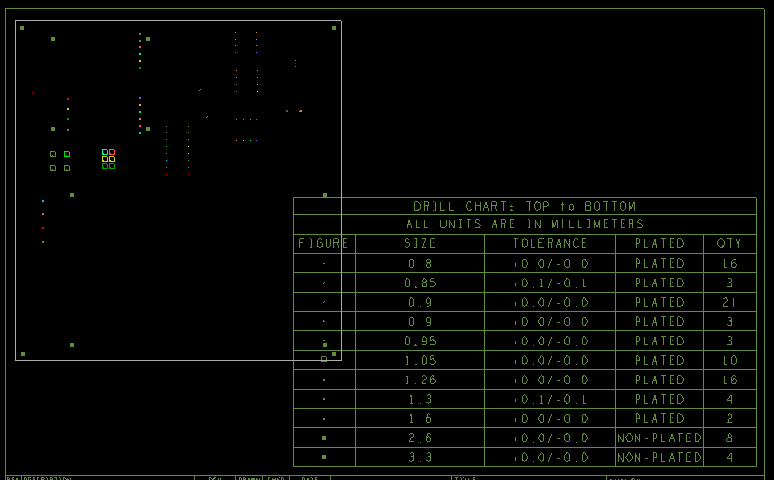

I have designed a relatively large PCB using a predefined page, when I go to create the NC drill table it is to large to fit in the page outline next to my Layout (shown below)

Is there a way to shrink the Drill table as I would prefer not to modify the Page outline

I am running 16.6 with the latest patch

Thanks for any help in advance

steve over 10 years ago

Locate the default-mm.dlt file (normally C:\Cadence\SPB_16.6\share\pcb\text\nclegend and open with a text editor. You can change text block size etc. Read the file carefully and adjust to suit. Save this as a different name and then browse for this new template from Manufacture - NC - Drill Legend.
Cancel
Vote Up 0 Vote Down

Cancel
nathstevenson over 10 years ago

As always Steve you have done me a great service and solved my problem, much appreciated
