Viper27 ST ic Import to PSPICE

JosePeeterson

I am trying to import the following model into PSPICE but I am getting an error.

www2.st.com/.../viper27.html

I copy the 2 (.olb and .lib) files to c:/cadence/spb/tools/pspice/library

Inside orcad capture, I import the .olb file into place part.

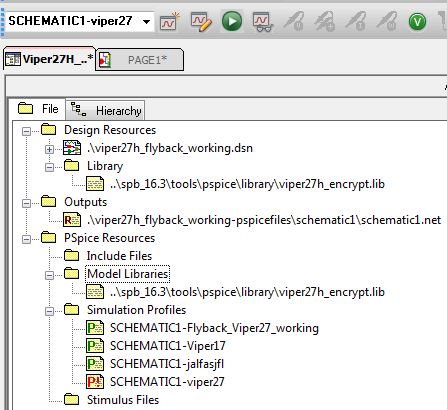

next I add file (.lib file) into library under Design resources

I copy this same file into Model libraries under Pspice Resources

I have connected all the pins to ground.

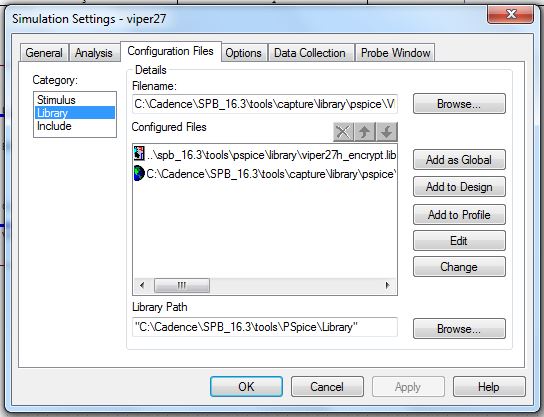

Inside configuration fieles

But I get the following error.

How do I make it work? I have followed this On Semi guide to importing external vendor models.

www.onsemi.com/.../TND6045-D.PDF

Parents
  • JosePeeterson
    Hi yes, I have it, nom.lib file in C:\CadenceSPB_16.3\tools\pspice\library\nom.lib Yes it is a licencesd full version. --------------------------------------------------------------------------------------------------------------------------------------
    The following 1 points have been identified as net connectivity change points from the last operation
    --------------------------------------------------------------------------------------------------------------------------------------
    (7.10, 1.00)
    Creating PSpice Netlist
    Writing PSpice Flat Netlist C:\CADENCE\PROJECTS\Viper27H_flyback_working-PSpiceFiles\SCHEMATIC1\SCHEMATIC1.net
    WARNING [NET0093] No PSpiceTemplate for D1, ignoring
    PSpice netlist generation complete
    [AUTOWIRE01] Auto Connection Failed between ( 7.800000,0.800000 ) and (8.000000,0.800000 )
    --------------------------------------------------------------------------------------------------------------------------------------
    The following 1 points have been identified as net connectivity change points from the last operation
    --------------------------------------------------------------------------------------------------------------------------------------
    (7.90, 0.80)
    --------------------------------------------------------------------------------------------------------------------------------------
    The following 1 points have been identified as net connectivity change points from the last operation
    --------------------------------------------------------------------------------------------------------------------------------------
    (7.40, 0.80)
    Creating PSpice Netlist
    Writing PSpice Flat Netlist C:\CADENCE\PROJECTS\Viper27H_flyback_working-PSpiceFiles\SCHEMATIC1\SCHEMATIC1.net
    ERROR [NET0085] Part D1 has no 'MODEL' property
    Net list creation aborted by the user.
    [AUTOWIRE01] Auto Connection Failed between ( 1.000000,1.400000 ) and (2.200000,0.800000 )
    Creating PSpice Netlist
    Writing PSpice Flat Netlist C:\CADENCE\PROJECTS\Viper27H_flyback_working-PSpiceFiles\SCHEMATIC1\SCHEMATIC1.net
    PSpice netlist generation complete
    Creating PSpice Netlist
    Writing PSpice Flat Netlist C:\CADENCE\PROJECTS\Viper27H_flyback_working-PSpiceFiles\SCHEMATIC1\SCHEMATIC1.net
    PSpice netlist generation complete
Reply
  • JosePeeterson
    Hi yes, I have it, nom.lib file in C:\CadenceSPB_16.3\tools\pspice\library\nom.lib Yes it is a licencesd full version. --------------------------------------------------------------------------------------------------------------------------------------
    The following 1 points have been identified as net connectivity change points from the last operation
    --------------------------------------------------------------------------------------------------------------------------------------
    (7.10, 1.00)
    Creating PSpice Netlist
    Writing PSpice Flat Netlist C:\CADENCE\PROJECTS\Viper27H_flyback_working-PSpiceFiles\SCHEMATIC1\SCHEMATIC1.net
    WARNING [NET0093] No PSpiceTemplate for D1, ignoring
    PSpice netlist generation complete
    [AUTOWIRE01] Auto Connection Failed between ( 7.800000,0.800000 ) and (8.000000,0.800000 )
    --------------------------------------------------------------------------------------------------------------------------------------
    The following 1 points have been identified as net connectivity change points from the last operation
    --------------------------------------------------------------------------------------------------------------------------------------
    (7.90, 0.80)
    --------------------------------------------------------------------------------------------------------------------------------------
    The following 1 points have been identified as net connectivity change points from the last operation
    --------------------------------------------------------------------------------------------------------------------------------------
    (7.40, 0.80)
    Creating PSpice Netlist
    Writing PSpice Flat Netlist C:\CADENCE\PROJECTS\Viper27H_flyback_working-PSpiceFiles\SCHEMATIC1\SCHEMATIC1.net
    ERROR [NET0085] Part D1 has no 'MODEL' property
    Net list creation aborted by the user.
    [AUTOWIRE01] Auto Connection Failed between ( 1.000000,1.400000 ) and (2.200000,0.800000 )
    Creating PSpice Netlist
    Writing PSpice Flat Netlist C:\CADENCE\PROJECTS\Viper27H_flyback_working-PSpiceFiles\SCHEMATIC1\SCHEMATIC1.net
    PSpice netlist generation complete
    Creating PSpice Netlist
    Writing PSpice Flat Netlist C:\CADENCE\PROJECTS\Viper27H_flyback_working-PSpiceFiles\SCHEMATIC1\SCHEMATIC1.net
    PSpice netlist generation complete
