How to rotate the bellcrank and modify FSAE_2012 template.

rahul.alex
As shown below in the first picture the bellcrank in the chassis is in the
x-z plane, but I needed the bellcrank to be located in the y-z plane, having the dampers making a "V" shape like below in the second image.

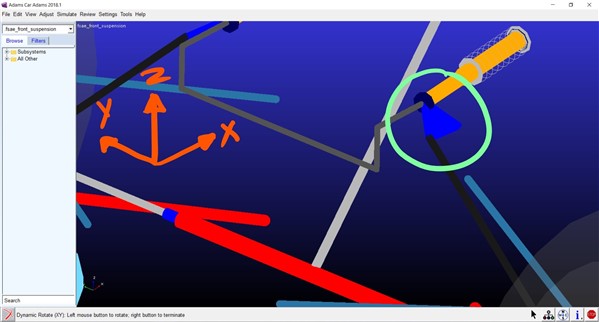

Problem
It would be great if someone could help me out in pivoting the bellcrank
to the y-z plane and have the dampers making a "V" shape.

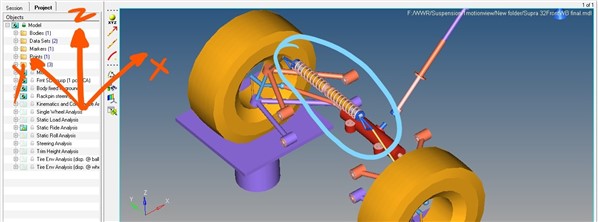

The ideal

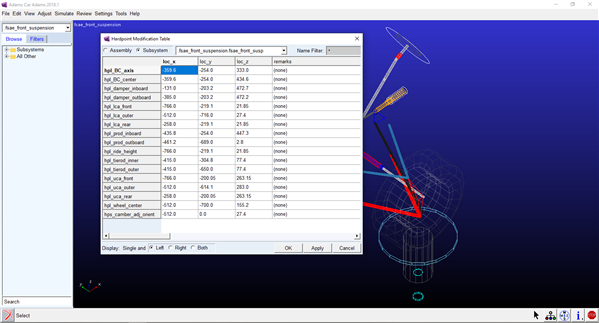

For reference, i am attaching the Picture of hard point adjustment table

Screenshot (14)

Thanks in advance.
