Can someone suggest me the easiest way or the flow chart of converting a demo vehicle into an All Wheel Drive vehicle?

rohan.tiwari
Can someone suggest me the easiest way or the flow chart of converting a demo vehicle into an All Wheel Drive vehicle?
  • 0
    Car

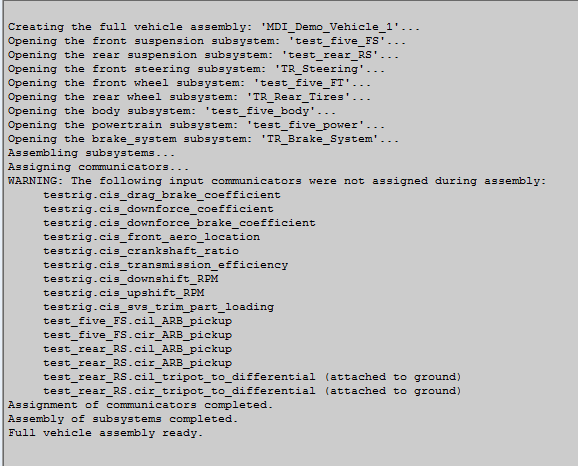

    Error1

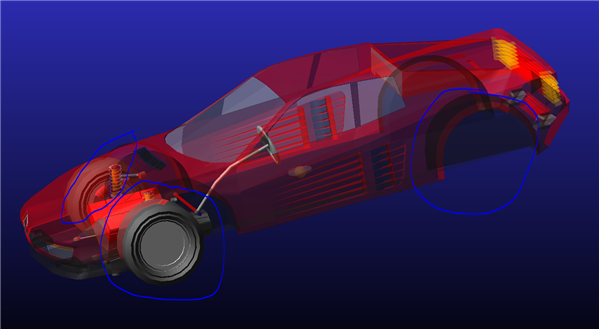

    Hello Derbas, The older task was getting little complicated, So I have started with the simple task by making the demo vehicle into a front wheel drive because it uses the same template for the suspensions subsystem. And I was able to connect all the connections. But now the problem is rear tire and rear suspension both are colliding with the front tire and suspension. I hope you can help me with this.
  • 0
    ​They aren't really colliding, from the Looks of it they are completely overlapping from the beginning ?

    In Standard Mode, open the following Subsystems:

    YOUR: Front and rear tires and suspension
    Shared: Front and rear tires and Suspension


    Under adjust, hardpoints, table you will find the coordinates of all the hardpoints

    Copy from the shared subystems into your Subsystems and click apply, the components should be then positioned correctly

    P.S: If an error occurs, make sure that the copying process didn't add spaces after every value on the last column (Z Values). If so then delete them and press apply again !

    Best of luck !
  • 0
    Hello, thank you for your reply.
    that worked perfectly, but i don't know why it is not simulating,
    i am getting this error-


    FUNCTION : VAR1251
    PROBLEMS GETTING TIRE PARAMETER
    VARIABLE ID : 7
    TIRE ID : 1
    ** STOPPING ADAMS SOLVER **
    Static Solution converged in 7 iterations
    Residual imbalance is less than 6.10733E-08

    End Static Solution

    Simulate status=0

    command: DEACTIVATE/JPRIM,ID=2
    Deactivated model.testrig.josinl_body_stake, force/torque values will be zero in function-expression references.
    command: DEACTIVATE/JPRIM,ID=3
    Deactivated model.testrig.josper_yaw_stake, force/torque values will be zero in function-expression references.
    command: DEACTIVATE/JPRIM,ID=5
    Deactivated model.test_five_FT.jolper_sse_jprim, force/torque values will be zero in function-expression references.
    command: DEACTIVATE/JPRIM,ID=6
    Deactivated model.test_five_FT.jorper_sse_jprim, force/torque values will be zero in function-expression references.
    command: DEACTIVATE/JPRIM,ID=7
    Deactivated model.five_six_RT.jolper_sse_jprim, force/torque values will be zero in function-expression references.
    command: DEACTIVATE/JPRIM,ID=8
    Deactivated model.five_six_RT.jorper_sse_jprim, force/torque values will be zero in function-expression references.


    fdm::ActVar
    Setting function on: driver_demand::clutch
    command: VARIABLE/96, FUNCTION=0.0
    command: ACTIVATE/JPRIM,ID=2
    command: ACTIVATE/SFORCE,ID=1
    command: ACTIVATE/JPRIM,ID=5
    command: ACTIVATE/JPRIM,ID=6
    command: ACTIVATE/JPRIM,ID=7
    command: ACTIVATE/JPRIM,ID=8
    command: DEACTIVATE/MOTION,ID=4
    Deactivated model.testrig.jms_steering_wheel_angle.motion, force/torque values will be zero in function-expression references.

    acar/vdm_gra_mod

    Setting gravity vector in g's to: 0.00000E+00 0.00000E+00 -1.00000E+00
    command: accgrav/igrav= 0.00000E+00,jgrav= 0.00000E+00,kgrav=-9.80665E+03

    Apply a two steps statics:


    Begin Static Solution

    *********************************************** >> A/Car-MS Error>> AMS_GET_TIREDATA : wrong input parameters *********************************************** MODULE A/Car-MS ERROR MESSAGE
    FUNCTION : VAR1251
    PROBLEMS GETTING TIRE PARAMETER
    VARIABLE ID : 6
    TIRE ID : 1
    ** STOPPING ADAMS SOLVER **
    *********************************************** >> A/Car-MS Error>> AMS_GET_TIREDATA : wrong input parameters *********************************************** MODULE A/Car-MS ERROR MESSAGE
    FUNCTION : VAR1251
    PROBLEMS GETTING TIRE PARAMETER
    VARIABLE ID : 7
    TIRE ID : 1
    ** STOPPING ADAMS SOLVER **


    ---- START: ERROR ----
    VARSUB(281, 1004, 811, 517, 517, 1) has been illegally defined. A new functional dependency on the measure
    DIF(-1) has been encountered during execution.

    ---- END: ERROR ----


    ---- START: ERROR ----
    Error call SYSFNC for DIFF in flt_whlvel.f
    ID = -1


    ---- END: ERROR ----

    Adams Solver (C++) run terminating due to STOP requested by user.

    Static Solution failed to converge

    End Static Solution

    Simulation failed



    ---- START: ERROR ----
    Sim/stat cannot be achieved ...Stopping in <apre_ssssta>
    ID = 1020


    ---- END: ERROR ----


    ---- START: ERROR ----

    Adams Solver (C++) run terminating due to STOP requested by user.


    ---- END: ERROR ----

    Termination status=-995



    ---- START: ERROR ----
    VARSUB(282, 1004, 800, 496, 496, 1) has been illegally defined. A new functional dependency on the measure
    DIF(-1) has been encountered during execution.

    ---- END: ERROR ----


    ---- START: ERROR ----
    Error call SYSFNC for DIFF in flt_whlvel.f
    ID = -1


    ---- END: ERROR ----


    ---- START: ERROR ----
    Unknown exception caught in SYSFNC

    ---- END: ERROR ----


    fdm::ActPoiTor
    Failed to get actuator force: rear_brake_torque::single_component_force


    ---- START: ERROR ----
    VARSUB(281, 1004, 811, 517, 517, 1) has been illegally defined. A new functional dependency on the measure
    DIF(-1) has been encountered during execution.

    ---- END: ERROR ----


    ---- START: ERROR ----
    Error call SYSFNC for DIFF in flt_whlvel.f
    ID = -1


    ---- END: ERROR ----


    ---- START: ERROR ----
    Unknown exception caught in SYSFNC

    ---- END: ERROR ----


    fdm::ActPoiTor
    Failed to get actuator force: rear_brake_torque::single_component_force
    Terminating Adams Car usersubs...


    Finished -----
    Elapsed time = 3.86s, CPU time = 1.47s, 38.00%

    Simulation is complete.

  • 0
    As it clearly says, something is wrong with the tires

    Check them out​, re-assign to them a .tir file

    If that doesn't work, run the Simulation in the Event builder rather than other places.
    If you deactivate the static solution there and give it proper Parameters, it will maybe at least simulate the first steps
