Cadence 6.1.5 ADE question

engine2011
engine2011 over 13 years ago

Hello,

 I meet a problem with ADE in Cadence 6.1.5. That is, I cann't see the 'main form' entry in the 'Direct plot'. What I have is 'plot outputs' but it's always grey. It makes me cannot see the SP, GA, NF and other RF circuit specs directly as before in 6.1.3 cadence.

 Is there anybody know what's the problem?

 Thanks!

EF

  • Cancel
Parents
  • Tawna
    Tawna over 13 years ago
    Hi EF,

    Please check your CIW for error/warning messages.   (or the CDS.log file in your project or home directory).  If there are problems, you will see error or warning messages.   Also, verify that you are not using an old .cdsinit or .cdsenv from 6.1.3 (in case some setting in one of those files is causing issues)

    I assume that you have an ADE-L simulation window open.  You have set spectre as your simulator and that you have been successful running spectre simulations thus far in ADE.

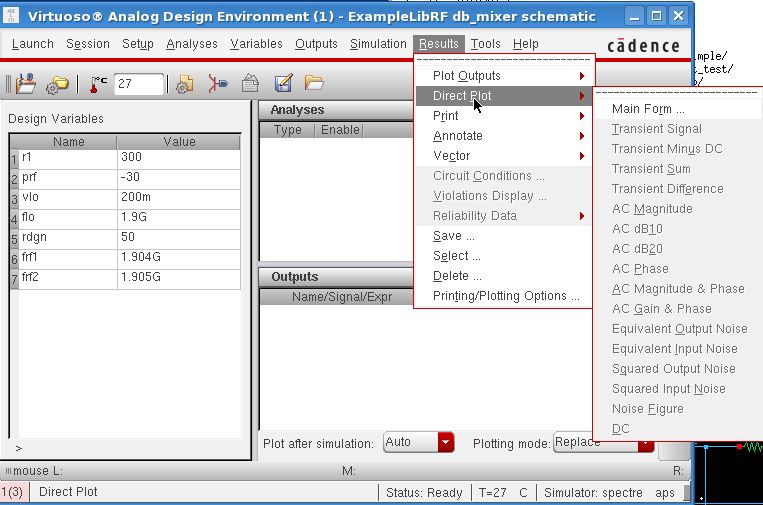

    I just happen to have IC615 open right now and going to start running spectreRF simulations.  (I hope the screen shot comes through and isn't filtered out.  I have included it below).
