How to mark a floating bus net as noConn in Schematic Composer in IC5141

RFStuff over 11 years ago

Dear All,

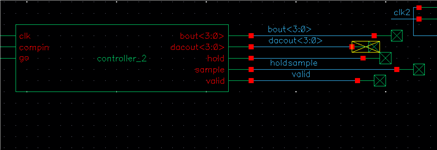

I have circuit block (symbol) with a bus line which I want to keep it floating.

To avoid the blinking, itried to use noConn . But it is not taking as it is a bus.

How it can be fixed ?

Kind Regards,

Parents

Andrew Beckett over 11 years ago

If the bus pin is (say) outbus<5:0> then give the instance name of the noConn NOC<5:0> - i.e. make it an iterated instance with the same width as the bus. That will sort it.
Andrew.
Cancel
Vote Up +1 Vote Down

Cancel
Asad Fakhri over 4 years ago in reply to Andrew Beckett

Sir Andrew!

I faced a problem to connect the output (q_bar) of flipflop with BUS and the ended point with ''noconn'' form basic library But it give 1 warning on the output of Flipflop by which the circuit doesn't simulate. please guide
Cancel
Vote Up 0 Vote Down

Cancel

Reply

Asad Fakhri over 4 years ago in reply to Andrew Beckett

Sir Andrew!

I faced a problem to connect the output (q_bar) of flipflop with BUS and the ended point with ''noconn'' form basic library But it give 1 warning on the output of Flipflop by which the circuit doesn't simulate. please guide
Cancel
Vote Up 0 Vote Down

Cancel

Children

Andrew Beckett over 4 years ago in reply to Asad Fakhri

I'd suggest you first read Guidelines for the Custom IC Design Forum as you'd then see that you should have posted in a new thread, specified the software version you were using, and provided enough information for somebody to have a hope of being able to answer (such as what the warning message was, how exactly it failed to simulate, and maybe a picture of what you've done).

Andrew.
Cancel
Vote Up 0 Vote Down

Cancel
