expression syntax for schPatchExpr

prashantpd

I am designing a circuit, where I need to connect a 32 bit wide bus to another bus which is 32 bits wide. I am trying to use a patch with the appropriate schPatchExpr, but I am not able to get the syntax right.

I tried the following

and get the following error

Error: Patch cord "I20" -270004): Illegal name syntax - Syntax error in connection expression.

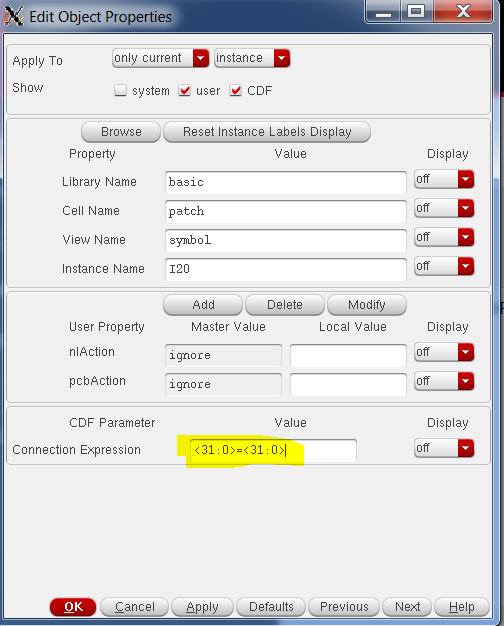

If I try creating the patch with the following expression in schPatchExpr

I get the error

Error: (SCH-3489): Shorted terminals - memTerms 'address_lrc_ram<31>' & 'address_i<31>' thru signals 'address_lrc_ram<31>' & 'address_i<31>'

Could somebody help me with the syntax for the schPatchExpr so that I am able to connect all 32 bits of the bus correctly.

Thanks

Prashant

Parents

  • The documentation is clear on this too (this is copied from the documentation):

    Note: Only one of the nets can be connected to a schematic pin (I/O pin). Also, in the schematic editor, you cannot connect an input pin to an output pin even though you use a patchcord in the middle.

    If you want to connect two pins together and rename them, the only way of doing this is to have a component in the way (such as basic/cds_thru, for example), You'd have to give the instance name of cds_thru I1<31:0> for example so that it has the same width as the bus. Note that cds_thru isn't a true short - it's designed for this kind of application though.

    Regards,

    Andrew.

  • in reply to Andrew Beckett

    Hi Andrew,

    I try to redefine a bus A<3:0> to B<1:0>,C<1:0> and am having trouble with the description of the example in the documentation.

    It seems that the net expression in the patch-cord needs to be "0:1=0:1" for the part that converts A<3:2> to B<1:0> and "2:3=0:1" for the branch that converts A<1:0> to C<1:0>.

    However, when I take A as the source and B and C as the destinations of the patch-cord as per the example (with SYSBUS<15:0>), I get an error. If I invert the direction of the patch-cords, it is accepted. In my case A is connected to an input pin, B and C are not connected to pins.

    I try to remember this convention as: "No matter how you define your busses on either side of the patch-cord, the net expression will index the bits from left to right as written as 0 up to n-1. You can merge several smaller busses into a large one, but not the other way around." Does this summarize it correctly?

Reply
  • in reply to Andrew Beckett

    Hi Andrew,

    I try to redefine a bus A<3:0> to B<1:0>,C<1:0> and am having trouble with the description of the example in the documentation.

    It seems that the net expression in the patch-cord needs to be "0:1=0:1" for the part that converts A<3:2> to B<1:0> and "2:3=0:1" for the branch that converts A<1:0> to C<1:0>.

    However, when I take A as the source and B and C as the destinations of the patch-cord as per the example (with SYSBUS<15:0>), I get an error. If I invert the direction of the patch-cords, it is accepted. In my case A is connected to an input pin, B and C are not connected to pins.

    I try to remember this convention as: "No matter how you define your busses on either side of the patch-cord, the net expression will index the bits from left to right as written as 0 up to n-1. You can merge several smaller busses into a large one, but not the other way around." Does this summarize it correctly?

Children
  • in reply to JanPrummel

    All you need to do is label one side A<3:0> and the other side B<1:0>,C<1:0> and set the patch cord expression to 0:3=0:3. Or it could be 3:0=3:0. The only fancy thing you could do is use 0:3=3:0 which is if you want to reverse the order.

    It's not as complicated as it might appear, to be honest.

    Andrew.
