pnoise jitter and pnoise time average discrepency: what is the problem?

skylink

Hi everyone,
I try to get the jitter from a clock generator, but I also need the phase noise curve for other reasons:
- When I simulate my circuit with the pnoise/jitter method, I get a RMS Jitter in a given bandwidth of 594.386fs (Jee>RMS).
- And when I simulate with the pnoise/time average method, by calculating my Jitter from the Phase Noise curve, I get 269.2fs.

Assuming that the pnoise>PM>Phase Noise plot is the IEEE definition, say Single-Sideband-to-Carrier Ratio, so-called L(df), "L-script of df",
I compute the RMS jitter as follows in my calculator:
[1 / sqrt(2)*pi*f0] * sqrt{ INTEGRAL[ L(df).df ] }

Of course, here L(df) is converted in linear, L(df)=10^LdBc(df)/10

In your opinion what do I miss??

Thanks a lot in advance for your help!

Parents

  • Dear syklink,

    skylink said:
    Assuming that the pnoise>PM>Phase Noise plot is the IEEE definition, say Single-Sideband-to-Carrier Ratio, so-called L(df), "L-script of df",
    I compute the RMS jitter as follows in my calculator:
    [1 / sqrt(2)*pi*f0] * sqrt{ INTEGRAL[ L(df).df ] }

    If you refer to the IEEE definition, your computation appears to be correct as L(f) is defined as the one-sided frequency expression. Hence, given the linear integration of L(f) "Integral" over a frequency range, the pseudo-code for the resulting rms jitter expressed in picoseconds at a reference frequency of target_freq_GHz is:

    (1000/target_freq_GHz)*pow(2*(Integral),0.5)/(2*pi)

    However, it is not clear what limits you used in your pnoise analysis nor the value of your target_freq_GHz. I am wondering if you have extended the maximum frequency limit of your pnoise analysis beyond the frequency of target_freq_GHz/2. If so, there will be aliasing that could inflate the value of Jee beyond what is expected.

    1. What are your pnoise frequency limits?

    2. What is your value of target_freq_GHz?

    These might provide insight on the discrepancy you are observing skylink.

    Shawn

  • in reply to ShawnLogan

    Hi Shawn and once again thank you for your feedback!

    1. pnoise frequency "limits": not sure to understand but I simulate between the offset frequencies 104kHz to 3.12GHz, and compute my integration between 104kHz and 1.04GHz.

    2. My clock is at f0=2.08GHz

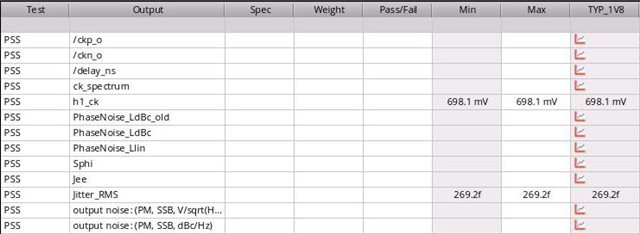

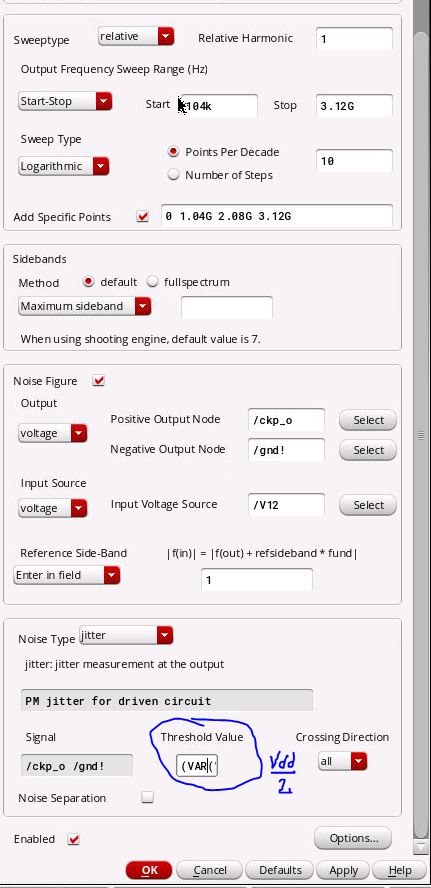

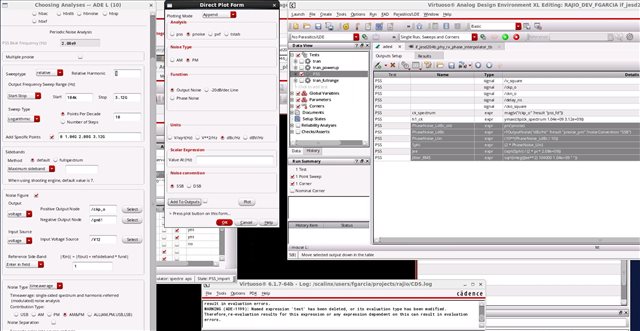

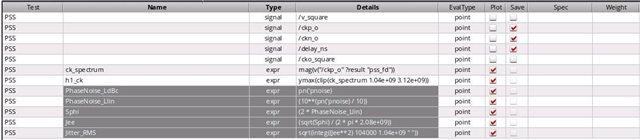

    You can find attached the screenshots of respectively my pnoise/time average settings, and the formulas I use in ADE-XL to extract the "wrong" RMS jitter value of 269.2fs (compared to pnoise/jitter analysis value = 594.4fs.)

    Hope this could help...

Reply
  • in reply to ShawnLogan

    Hi Shawn and once again thank you for your feedback!

    1. pnoise frequency "limits": not sure to understand but I simulate between the offset frequencies 104kHz to 3.12GHz, and compute my integration between 104kHz and 1.04GHz.

    2. My clock is at f0=2.08GHz

    You can find attached the screenshots of respectively my pnoise/time average settings, and the formulas I use in ADE-XL to extract the "wrong" RMS jitter value of 269.2fs (compared to pnoise/jitter analysis value = 594.4fs.)

    Hope this could help...

Children
  • in reply to skylink

    it is better with the attachments :-)

  • in reply to skylink

    Dear skyline,

    I noticed you are using the pn() function in your expression "PhaseNoise_LdBc". That is not the function I use to compute SSB L(f) following a pnoise analysis. The function I believe you should use is:

    rfOutputNoise("dBc/Hz" ?result "pnoise" ?noiseConvention "SSB")

    This will assure that your phase noise curve is expressed in "dBc/Hz" and conforms to the L(f) IEEE definition. Have you tried using that function? The definition of the pn() function, from the ocean reference manual, follows. This function is used in a transient analysis. As a result, I'm thinking your expression for the integrated phase noise is not quite what you want.

    Shawn

    PN

    PN(
o_waveform
t_crossType
n_threshold 1.0
[ ?windowName t_windowName ] [ ?smooth x_smooth ] [ ?windowsize x_windowsize ] [ ?detrending t_detrending ] [ ?cohGain f_cohGain ] ) => o_waveform / nil

    Description

    Calculates the transient phase noise of the input waveforms in decibels (dBc/Hz). Phase noise is defined as the power spectral density of the absolute jitter of an input waveform.

    Arguments

    o_waveform

    Waveform object representing simulation results that can be displayed as a series of points on a grid. (A waveform object identifier looks like this: srrWave:XXXXX.)

    ?crossType t_crossType

    The points at which the curves of the waveform intersect with the threshold. While intersecting, the curve may be either rising or falling.

    Valid values: rising and falling, respectively.

    Default crossType is rising.

    ?windowName t_windowName

    The window type.Valid values: ’Blackman, ’Cosine2, ’Cosine4, ’ExtCosBell, ’HalfCycleSine, ’HalfCycleSine3 or ’HalfCycleSine6, ’Hamming, ’Hanning, ’Kaiser, ’Parzen, ’Rectangular, ’Triangular, or ’Nuttall.

    Default value: ’Rectangular

    ?smooth x_smooth

    The Kaiser window smoothing parameter. The 0 value requests no smoothing.Valid values: 0 <= x_smooth <= 15.

    Default value: 1

    ?windowsize x_windowsize

    The number of frequency domain points to use in the Fourier analysis. A larger window size results in an expectation operation over fewer samples, which leads to larger variations in the power spectral density. A small window size can smear out sharp steps in the power spectral density that might really be present.

    Default value: 256

    ?detrending t_detrending

    The detrending mode to use.Valid values: ’None, ’mean, ’Linear

    Default value: ’Mean

    ?cohGain f_cohGain

    A scaling parameter. A non-zero value scales the power spectral density by 1/(f_cohGain).Valid values: none, default, magnitude, dB20, or dB10

    Default value: db20

    Value Returned

    o_waveform

    The power spectral density waveform returned when the command is successful.

    nil

    Returns nil when the command fails.

    Example

    PN(v("net9") "rising" 1.0 ?windowName "Rectangular" ?smooth 1 ?windowSize 256 ?detrending "Mean" ?cohGain (10**(/20)) )

    Returns the Phase Noise waveform, net9, for the window type rectangular at threshold value 1.0.

  • in reply to ShawnLogan

    Thanks Shwawn,

    Actually the rfOutputNoise and pn functions give me exactly the same waveform, as a result I still get the same "wrong" jitter result of 269.2fs ...

  • in reply to skylink

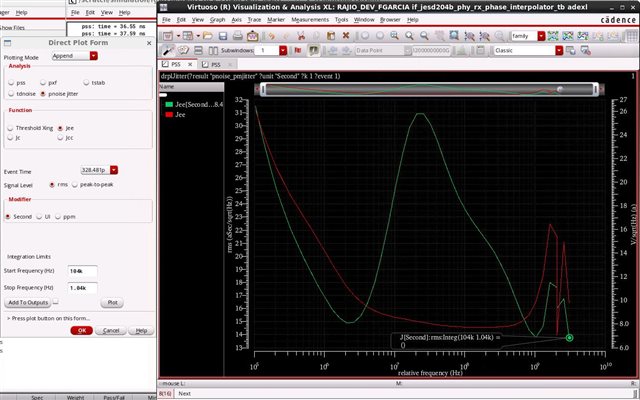

    I have noticed that the Jee waveform given by the "jitter" analysis is not the same as the "Jee" I have computed with the "time average" function; I think this is a first hint, see:

  • in reply to skylink

    Could it be my "jitter" settings that are incorrect (pessimistic)? I am using a "Vdd/2" threshold in that case
