plotting Smith charts

dzakharian
dzakharian over 5 years ago

Hello,

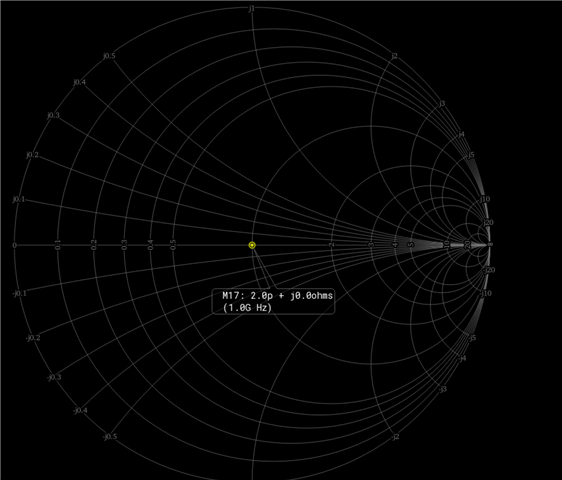

I'm running an .sp analysis with a simple setup--port set to 100ohm, with 100ohm load.  I'm plotting results on a Z-Smith, which i thought should give me Re(Z)=1 (normalized)... but instead I'm getting something like 2e-12 as the prime center.  I don't understand why this is the case.  I'm relatively new to Smith charts, but I'm guessing the plot actually shows reflection coefficient, not the impedance?  If this is the case, how can I request an impedance plot?

I'm on version 6.1.8.

Many thanks in advance for your help,
David

  • Cancel
  • dzakharian
    dzakharian over 5 years ago

    I did some more experimenting and consulting with colleagues, and at this point I'm pretty sure the Smith chart option always shows the scattering parameters, regardless of whether I choose Z-smith or Y-smith.  I'm ultimately interested in getting the normalized complex port impedance... can this be done without resorting to manual transformation from scattering parameters to impedance?

    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
  • ShawnLogan
    ShawnLogan over 5 years ago in reply to dzakharian

    Dear dzakharian,

    dzakharian said:
    I'm ultimately interested in getting the normalized complex port impedance... can this be done without resorting to manual transformation from scattering parameters to impedance?

    I'm not sure if you tried the technique described in the following URL:

    https://support.cadence.com/apex/ArticleAttachmentPortal?id=a1O0V00000911gRUAQ&pageName=ArticleContent

    Basically, this technique relies on a short ocean script to execute following the completion of your S parameter simulation. It is an extra step, but would prevent you from needing to do a transformation of your output S-parameters to complex impedance. Perhaps you have already tried this - in which case I apologize for my forum post!

    Shawn

    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
  • ZoltanT
    ZoltanT over 5 years ago

    Hi dzakharian,

    It seems good to me. You have a 100 Ohm reference system loaded with 100 Ohm. No reflection, so S11=0. The 2p is probably numerical error. 2e-15 is very good accuracy!

    The Z- and Y-Smiths returns the same reflection coefficient plane, just with different grids. Clearly this is not how one works with Smith charts on paper, but once the server does all the calculations it is great, or even better.

    Regards,
    Zoltan

    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
  • dzakharian
    dzakharian over 5 years ago in reply to ShawnLogan

    Hi Shawn,

    Thanks for the reply.  I'll give that ocean script a shot, but I believe that it still plots the scattering data, not the complex impedances (at least there is nothing in that script that would do the conversion).

    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
  • dzakharian
    dzakharian over 5 years ago in reply to ZoltanT

    Hi Zoltan,

    Yes, the matching at S11=0 is perfect, in terms of scattering parameters.  But I'm interested in the actual impedance, not scattering parameters (so Z11, not S11).

    • Cancel
    • Vote Up +1 Vote Down
    • Cancel
  • Andrew Beckett
    Andrew Beckett over 5 years ago in reply to dzakharian

    Why not plot Z11 then? You could plot zpm('sp 1 1) on a polar chart (not sure it makes much sense to plot Z11 on a Smith Chart, but I'm not a microwave engineer so I might be talking rubbish). You can also plot real(zpm('sp 1 1)) and imag(zpm('sp 1 1)) on a rectangular graph to see the complex impedance that way. Or plot one versus the other with waveVsWave.

    Andrew.

    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
  • ZoltanT
    ZoltanT over 5 years ago in reply to dzakharian

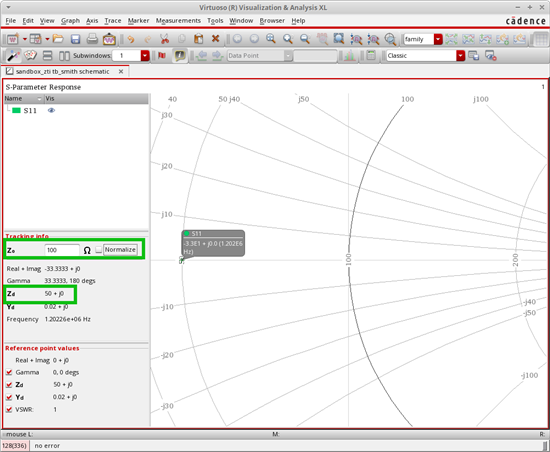

    It is also there.
    Read impedance under cursor from Smith chart

    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
  • ZoltanT
    ZoltanT over 5 years ago in reply to Andrew Beckett

    Andrew, a stereotypical typical microwave engineer is more likely to think in terms of normalized waves, than fuddling with impedances or dealing with the differences between a current or voltage signal.

    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
  • dzakharian
    dzakharian over 5 years ago in reply to Andrew Beckett

    Hi Andrew,

    Thanks for the tip.  I'm not a microwave engineer, but am learning how to design a matching network, so I was looking to get some insight into what happens to the impedance as I vary parameters, as opposed to scattering params.  Z11 on polar chart worked, but I was wondering if there is a way to specify a "chart type" in Assembler output?  Right now I have zpm('sp 1 1) as my expression, but when I plot it always defaults to smith chart "impedance" graph.

    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
  • dzakharian
    dzakharian over 5 years ago in reply to ZoltanT

    Hi Zoltan,

    Thanks for pointing this out!  Exactly what I wanted.  Do you know if there is a way to extract Z and Y values in the Tracking Info using calculator functions?

    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
>
