ADEXL different accuracy setting for sub-blocks

TaoC
TaoC over 4 years ago

Hi,

I'm doing a large post-layout circuit transient simulation. I only need high accuracy on part of the entire circuit. Using "conservative" will be applied to the entire netlist and it will slow down the simulation. Is there a way to only specify some transistors to be "conservative", while the rest to be "liberal"?

Thanks,

-Tao

  • Cancel
  • ShawnLogan
    ShawnLogan over 4 years ago

    Dear TaoC,

    TaoC said:
    I only need high accuracy on part of the entire circuit. Using "conservative" will be applied to the entire netlist and it will slow down the simulation. Is there a way to only specify some transistors to be "conservative", while the rest to be "liberal"?

    Did you happen to review the Spectre Manual at URL:

    support.cadence.com/.../ArticleAttachmentPortal

    Under the heading "Sweeping Parameters During Transient Analysis", which I copied and included below,  the manual notes that the value of errpreset can be changed locally at the subcircuit level using the keyword "sub=<subcircuit_name>" with the "param_name" set to param="errpreset".

    This allows, for example, an errpreset of "conservative" for a critical analog circuit while a less time intensive value of errpreset may be used for a digital, low speed, portion of the netlist.

    I hope I understood your question!

    Shawn

    Sweeping Parameters During Transient Analysis

    You can modify temperature, tolerance, and design parameter settings at device, subcircuit, or model level during a transient analysis. The syntax is:

    Name tran param=param_name, { param_vec=[ t1 val1 t2 val2...] | param_file=file }, [ dev=d1 | mod=m1 | sub=s1 ], param_step=time

    where

    Name

    Name of the transient analysis.

    param=param_name

    Dynamic parameter name. The parameter name can be a design parameter, errpreset, method, relref, maxstep, isnoisy, lteratio, reltol, residualtol, vabstol, iabstol, temp, and tnom.

    param_vec=[ t1 val1 t2 val2...]

    Time points and values of the parameter.

    param_file=file

    File name if the param_vec is defined in a separate file.

    dev=d1 | mod=m1 | sub=s1

    Defines local scope for design parameters. Can be a device model instance (dev), device model name (mod), or subcircuit instance name (sub). Does not apply to temp, reltol, residualtol, vabstol, iabstol, or isnoisy.

    param_step=time

    Specifies whether the time_value pair given by the param_vec parameter is to be updated in one step, or as a series of steps. See Examples 1 and 2 below. Default value: 0

    faultreadic

    Specifies the file that contains the initial condition (ic) information related to fault sensitivity analysis.

    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
  • TaoC
    TaoC over 4 years ago in reply to ShawnLogan

    Thank you Shawn! This is exactly what I need. In the ADE gui, I also found this dynamic parameter option. But it seems that I can only select the param vector. Is it possible to add subcircuit in the ADE GUI window?

    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
  • ShawnLogan
    ShawnLogan over 4 years ago in reply to TaoC

    Dear TaoC,

    TaoC said:
    I also found this dynamic parameter option. But it seems that I can only select the param vector. Is it possible to add subcircuit in the ADE GUI window?

    I am happy to read I understood your question!

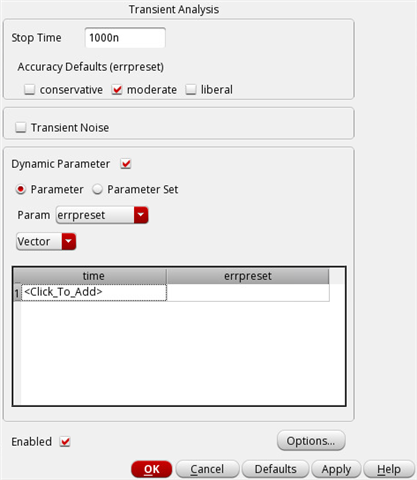

    I think you might use the additional parameter entry box in the Misc tab of the transient analysis panel I've highlighted in Figure 1 to include the syntax shown in the  reference manual. To verify this, create a netlist and verify that the transient analysis command contains both the errpreset value you desired and the "sub=" you entered in the additional parameter box. I dud not try this, so that is why I am recommending you verify it provides the proper syntax in the input.scs file.

    Shawn

    Figure 1

    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
