Ideal ADC model setting in adhllib

Mostafa A
Mostafa A over 4 years ago



Hi everyone,

Does anyone know how should I set an ideal ADC in adhllib? Specifically parameters "Vref" and "model".

And a general question; I remember in ADS tools by clicking on "Help" we would be directed to a page to see how to set the parameters of a specific component. Is there such option for Cadence? (when I click on help it direct me to a page, but nothing is said about that component setting)

Thanks

Mostafa

  • Cancel
  • ShawnLogan
    ShawnLogan over 4 years ago

    Dear Mostafa,

    Mostafa A said:
    Does anyone know how should I set an ideal ADC in adhllib? Specifically parameters "Vref" and "model".

    Did you happen to examine the veriloga for the cell? In the comments at the beginning of the file, it notes:

    // INSTANCE parameters
    // tdel, trise, tfall = {usual} [s]
    // vlogic_high = [V]
    // vlogic_low = [V]
    // vtrans_clk = clk high to low transition voltage [V]
    // vref = voltage that voltage is done with respect to [V]
    //
    // MODEL parameters
    // {none}
    //
    // This model is ideal in the sense that there is no mismatch modeled.

    Hence, my understanding is ref is the range of your analog  input signal. Its default value is set to 1.0 V.  This makes sense to me as the first comparison is made to 1/2 of ref:

    @ ( initial_step ) begin
    halfref = vref / 2;

    I don't think the "model" you refer to is a parameter.

    Shawn

    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
  • Mostafa A
    Mostafa A over 4 years ago in reply to ShawnLogan

    Hi Shawn,

    Thanks you so much for reply. I don't know how can I see and examine the verilog codes of the component in "adhllib". Could you please let me know how I can do that?

    Mostafa

    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
  • ShawnLogan
    ShawnLogan over 4 years ago in reply to Mostafa A

    Dear Mostafa,

    There are a few ways to view the code. Two are included below to hopefully help you.

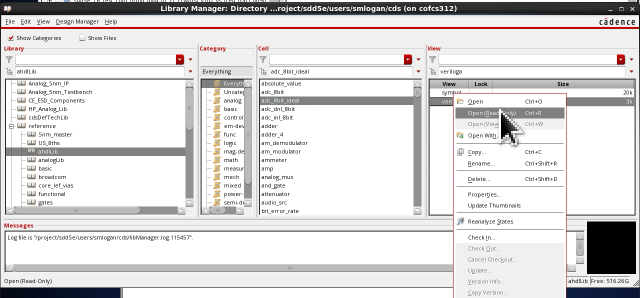

    1. As shown in Figure 1, you may open the  veriloga code for read from the library manager.

    2. If you have instantiated the symbol for the component in a schematic, you can descend into its veriloga view directly by doing a bindkey "e"' and selecting its veriloga view.

    Do either or both of these help?

    Shawn

    Figure 1

    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
  • Mostafa A
    Mostafa A over 4 years ago in reply to ShawnLogan

    Thanks a lot dear Shawn,

    The first way did not work me because I don't have "verilog" in "view" part. I only have "symbol (I don't know why)

    But doesn't matter because the second way worked.

    Thanks

    Mostafa

    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
  • ShawnLogan
    ShawnLogan over 4 years ago in reply to Mostafa A

    Dear Mostafa,

    Mostafa A said:
    The first way did not work me because I don't have "verilog" in "view" part. I only have "symbol (I don't know why)

    Hmmm...the veriloga view must be accessible or you would not be able to simulate the circuit containing the instantiation. Might the view in the Library Manager be hidden?

    Mostafa A said:
    But doesn't matter because the second way worked.

    Great! That is good to read! Thank you for letting us know!

    Shawn

    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
  • Mostafa A
    Mostafa A over 4 years ago in reply to ShawnLogan

    Oh, now I can see the "verilogA" in "view" part!!! I don't know what happened, I just followed the the second way you said (pressing "e")  :-) but I can see it now in "view" part as well!

    Thanks

    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
  • ShawnLogan
    ShawnLogan over 4 years ago in reply to Mostafa A

    Hi Mostafa,

    Mostafa A said:
    Oh, now I can see the "verilogA" in "view" part!!! I don't know what happened, I just followed the the second way you said (pressing "e")

    Excellent! A refresh or library update may have occurred as a result of your query of the symbol view in your schematic. In any case, I am happy too!

    Shawn

    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
  • Mostafa A
    Mostafa A over 4 years ago in reply to ShawnLogan

    Yes maybe.

    Thanks a lot Shawn

    Mostafa

    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
