Pspice model simulation in ADE XL

xiaocheng

Hi everyone,

I am trying to simulate a system in which one sub-circuit is Spectre model and another sub-circuit of Memrisistor is Pspice model. I have created a config file and used the simulator AMS to simulate this system. And I have referenced the Pspice model via the "PSpice Files" section of the Setup->Simulation Files in ADE.

A subset of the errors output by the simulator are as follows:

Fullscreen 2072.New Text Document.txt Download
-endlib
        ./cds_globals.vams
        -l ../psf/irun.log
        -spectre_args +mts
file: ./netlist.vams
DBMDmodel6_R_NL #(.blotz(1.3806e-23), .theta(300), .richard(1201600), .mcharge(9.1093e-31), .electronvolt(1.6022e-19), .echarge(1.6022e-19), .epsilon0(8.8542e-12), .scale(10), .area("(1e-06)**2*scale"), .schottkywidth(2.5e-09), .phis0ev(0.7), .phis0p("phis0ev*electronVolt"), .......
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                               |
ncvlog: *E,UNDIDN (./netlist.vams,823|1119): 'area': undeclared identifier [12.5(IEEE)].

DBMDmodel6_R_NL #(.blotz(1.3806e-23), .theta(300), .richard(1201600), .mcharge(9.1093e-31), .electronvolt(1.6022e-19), .echarge(1.6022e-19), .epsilon0(8.8542e-12), .scale(10), .area("(1e-06)**2*scale"), .schottkywidth(2.5e-09), .phis0ev(0.7), .phis0p("phis0ev*electronVolt"), .phis1ev(0.9), .phis1p("phis1ev*electronVolt"), .n0(2.9), .n1(4.1), .conductivity(0.0004), .dec(2.5e-09), .phit0ev(2.8), .phit0p("phit0ev*electronVolt"), .dt0c(1.1e-09), .dt1c(1.23e-09), .phia0ev(0.68), .phia0p("phia0ev*electronVolt"), .phia1ev(0.95), .ucc(0.0001), .phia1p("phia1ev*electronVolt"), .....
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                        |
ncvlog: *E,UNDIDN (./netlist.vams,823|1208): 'area': undeclared identifier [12.5(IEEE)].

errors: 2 warning: 0

Does anyone have any idea on how to simulate this system?

The Virtuoso version is IC6.1.8-64b.83, Spectre version is 18.1.0.077.

Thank you very much in advance,

Xiaocheng

Parents

  • Hi Xiaocheng,

    Without seeing how you've set up this component, can't really comment. Something is a bit odd, because area appears to be being netlisted as a string, so it suggests that you haven't set parseAsNumber=yes and parseAsCEL=yes in the CDF for that component (the same for a few of the other parameters).

    Andrew.

  • in reply to Andrew Beckett

    Hello Andrew,

    thank you very much for your help.

    By following your suggestion, I have set the parseAsNumber=yes and parseAsCEL=yes in the CDF for my component.

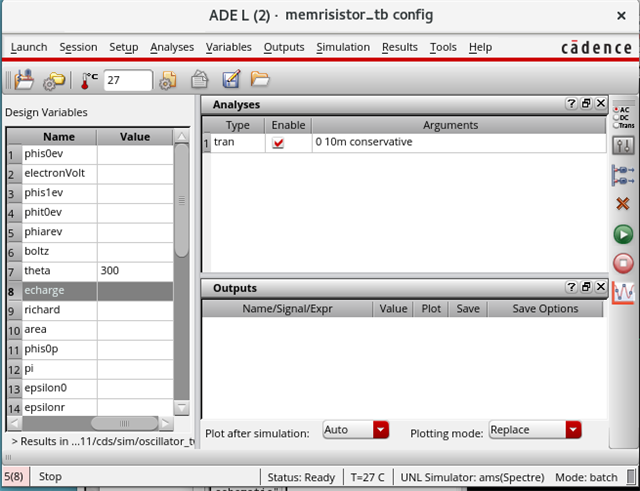

    Now in the ADE L window all variables of my component appear in the "Design Variables" section. However, all the values of variables are empty, see attached screenshot. Can the values be automatically loaded? or shall I add those values manually, for example, I set 'theta' as 300 in this plot?

    Thanks a lot for your help ,

    Xiaocheng

Reply
  • in reply to Andrew Beckett

    Hello Andrew,

    thank you very much for your help.

    By following your suggestion, I have set the parseAsNumber=yes and parseAsCEL=yes in the CDF for my component.

    Now in the ADE L window all variables of my component appear in the "Design Variables" section. However, all the values of variables are empty, see attached screenshot. Can the values be automatically loaded? or shall I add those values manually, for example, I set 'theta' as 300 in this plot?

    Thanks a lot for your help ,

    Xiaocheng

Children
  • in reply to xiaocheng

    If you set the variables in ADE L, and then do Variables->Copy to CellView, it will store the variable settings on the memristor_tb cell so that any time it is opened they will be set.

    It's not really clear what you want though here - I somehow doubt that these really need to be exposed variables since many of them are physical constants and cannot be changed.

    I suggest you speak with customer support so we can get a better idea of the exact form of your files and how you expect them to be used.

    Andrew
