ABCD parameters from .snp file

Assuming you're using Virtuoso and ADE (you didn't say), I just wrote this calculator function to handle this. The file needs to retain the ".ils" suffix, and you can add to the calculator using the "fx" button in the function panel or the "+" button in the expression evaluator. It allows you to either do this from an s-parameter simulator or an s-parameter file (see the comments at the top):

/* abABCD.ils

Author     A.D.Beckett
Group      Custom IC (UK), Cadence Design Systems Ltd.
Language   SKILL
Date       Dec 11, 2023
Modified
By

Get ABCD parameters from a set of s-parameters (either from simulation results
or directly from an s-parameter file). Can use:

abABCD('sp "A") ; or "B" or "C" or "D" (can be symbols too)

The first argument can be the same as spm supports - i.e. 'sp, 'psp, 'hbsp
etc (strings are allowed too), but also supports the use of 'file too. If
you use:

abABCD('file "B" ?result "model1_GPDK045_typical_withMapping" ?resultsDir
       "./model1_GPDK045_typical_withMapping.s2p")

Note that you can also use:

openResults("./model1_GPDK045_typical_withMapping.s2p")
selectResult("model1_GPDK045_typical_withMapping")
abABCD('file "C")

too.

Note that the results of each of the parameters
are complex values versus frequency.

The results have been validated against MATLAB using commands such as this:

ABCD=abcdparameters('model1_GPDK045_typical_withMapping.s2p')
plot(ABCD.Frequencies,real(rfparam(ABCD,'B')))

Quite a useful blog from Cadence System Analysis which gives the equations
resources.system-analysis.cadence.com/.../2020-how-to-calculate-a-transfer-function-from-s-parameters

Keep the .ils suffix of the file (because it uses SKILL++ semantics), and
you can add to the calculator using the "fx" button in the function panel
in the calculator or the "+" button in the expression evaluator.

***************************************************

SCCS Info: @(#) abABCD.ils 12/11/23.14:53:24 1.2

*/

/********************************************************************
*                                                                   *
*       (abABCD  ana param @key (Z0 50.0) result resultsDir)        *
*                                                                   *
*    Function to access s-parameter results as ABCD parameters.     *
* The ana argument can be a symbol or string, sp, psp, qpsp, hbsp,  *
*      lssp or file. If file, then the ?result and ?resultsDir      *
*  arguments are used to read from an s-parameter file. The param   *
* is a string or symbol for which of the four parameters A, B, C, D *
*  you want. The characteristic impedance is via the optional ?Z0   *
*                      argument (default 50).                       *
*                                                                   *
********************************************************************/

(defun abABCD (ana param @key (Z0 50.0) result resultsDir)
  (defun getSP (ana i j @key result resultsDir)
    (if (eq (concat ana) 'file)
      (getData (lsprintf "s%d,%d" i j) ?result result ?resultsDir resultsDir)
      (spm ana i j)
      ))
  (let (
        (s11 (getSP ana 1 1 ?result result ?resultsDir resultsDir))
        (s12 (getSP ana 1 2 ?result result ?resultsDir resultsDir))
        (s21 (getSP ana 2 1 ?result result ?resultsDir resultsDir))
        (s22 (getSP ana 2 2 ?result result ?resultsDir resultsDir))
        abcdParam
        )
    (setq abcdParam
          (if (and s11 s12 s21 s22)
            (quotient
              (caseq (concat param)
                     (A (plus
                          (times (plus 1 s11) (difference 1 s22))
                          (times s12 s21)))
                     (B (times
                          Z0
                          (difference
                            (times (plus 1 s11) (plus 1 s22))
                            (times s12 s21))))
                     (C (quotient
                          (difference
                            (times (difference 1 s11) (difference 1 s22))
                            (times s12 s21))
                          Z0))
                     (D (plus
                          (times (difference 1 s11) (plus 1 s22))
                          (times s12 s21)))
                     (t
                       (error "abABCD: param must be one of A,B,C,D")))
              2.0 s21)
            (error "abABCD: could not access at least one of s11, s12, s21, s22")
            ))
    ;--------------------------------------------------------------------
    ; Set the expression on the waveform to make it more readable
    ;--------------------------------------------------------------------
    (if (eq (concat ana) 'file)
      (famSetExpr
        abcdParam
        `(abABCD ',(concat ana) ,(get_string param)
                 ?result ,result ?resultsDir ,resultsDir))
      (famSetExpr abcdParam `(abABCD ',(concat ana) ,(get_string param)))
      )
    abcdParam))

; NOTE: Have intentionally removed the ?result and ?resultsDir
; arguments since doing these from calculator is not that likely
;
;;;;;;;;;;;;;;;;;;;;;;;;;; GUI builder information ;;;;;;;;;;;;;;;;;;;;;;;;;;;
ocnmRegGUIBuilder(
 '(nil
  function abABCD
  name abABCD
  description "Retrieve ABCD parameters of two-port network"
  category ("Custom Functions")
  analysis (nil
      general (nil
        args (ana param Z0)
          params(nil
                 ana (nil
                       prompt "Analysis Type"
                       tooltip "Select the analysis type"
                       guiRowHint 0
                       default "sp"
                       type ("sp" "psp" "qpsp" "hbsp" "lssp" "file")
                       required t
                 )
                 param (nil
                       prompt "Parameter"
                       tooltip "ABCD parameter name"
                       guiRowHint 1
                       default "A"
                       type ("A" "B" "C" "D" )
                       required t
                 )
                 Z0 (nil
                       prompt "Z0"
                       tooltip "Characteristic Impedance"
                       guiRowHint 1
                       type float
                       default 50.0
                       required nil
                       keyed t
                 )
          )
        inputrange t
      )
  )
  outputs(result)
 )
)

Dear Maria98,

Maria98 said:

Can i simulate the structure to get ABCD parameters directly, or need to get ABCD parameters from the SNP file?

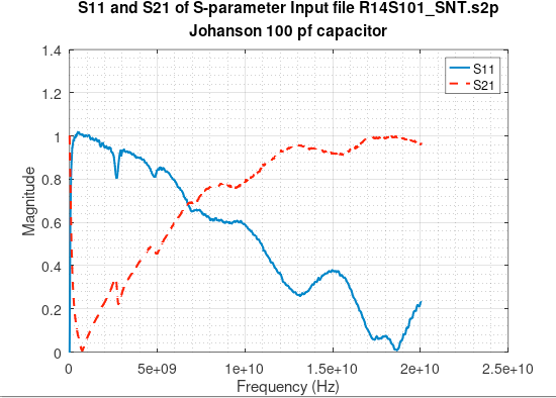

Figure 1

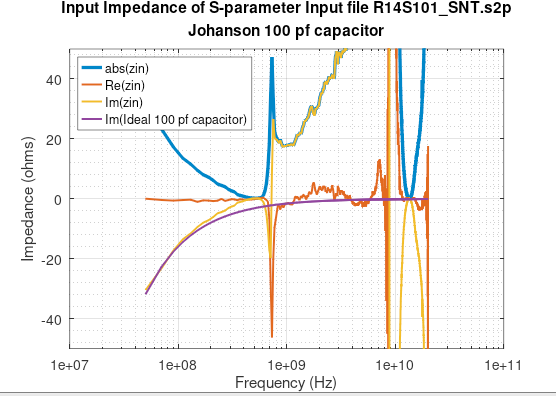

Figure 2

abcd_example_octave_sml_121223.zip

Dear Maria98,

For some reason, I was unable to post the text in my response as it indicates an error occurred. After trying different things for two days, I have included my response as a Portable Document Formatted file. Sorry for the inconvenience Maria98!

Shawn

sml_forum_post_response_121123.pdf
