Format of "VCD Info File"

Well, after correcting cal_dac name I see that there is no proble (except mapping one wire form vcd bus, i.e. grp1_adc[50:0] to a signal in schematic) there is no problem, it's Ok.

All other "no connect" warnings concern schematic internal nodes (I saw it after after activating an optinon allowing to display all warnings).

Nevertheless the signals at VCD-schematic interface do not evolve as they should, i.e. I don't see clock

You can upload other files via Insert Image/Video/File. You might need to give the file a ".txt" suffix though.

Perhaps with an example I can look and see what you mean by this:

pyohayo said:

Nevertheless the signals at VCD-schematic interface do not evolve as they should, i.e. I don't see clock

Andrew

Here it is:

Perhaps with an example I can look and see what you mean by this:

I mean I see clock (i.e.grp1_clk)  in SimVision, but don't see it in Virtuoso Graph window once simulation terminated.

file_vcd.txt

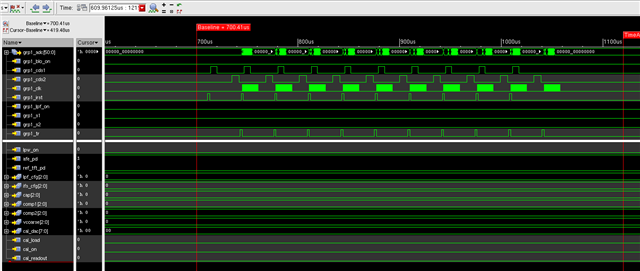

Here is as it should look:

And here are the same signals in Virtuoso:

Resolved.

In SimVision I've exported range 700us ... 1100us hoping that time will be shifted to 0 ... 400us, that wasn't the case.
