How to properly move a part between OLBs with TCL?

I am trying to clean up some old libraries i.e. move unused parts from active.olb to unused.olb. The code is presented below. Everything works pretty well except that there is something hanging inside active.olb that prevents creating a part that was there before. E.g. if PART_123 was moved from active olb to unused.olb, I can not create PART_123 again. If I look inside active.olb file, PART_123 is still mentioned, despite not being shown in the lib tree structure. I guess I am missing some cleanup in my code, but I can't figure what exactly, so I am asking for your help.

set lSession [DboTclHelper_sCreateSession]
set lStatus [DboState]
set lNullObj NULL

#Provide the location of olb FROM which package should be copied.
set lSourceLibPath [file normalize {D:\ACTIVE.OLB}]
set lSourceLibPathCstring [DboTclHelper_sMakeCString $lSourceLibPath]
set lSourceLib [$lSession GetLib $lSourceLibPathCstring $lStatus]

#Provide the location of olb TO which package should be copied.
set lDestnLibPath [file normalize {D:\UNUSED.OLB}]
set lDsctnLibPathCstring [DboTclHelper_sMakeCString $lDestnLibPath]
set lDestnLib [$lSession GetLib $lDsctnLibPathCstring $lStatus]

#parse all packages in the olb
set pkgIter [$lSourceLib NewPackagesIter $lStatus]
set pPkg [$pkgIter NextPackage $lStatus]

while {$pPkg!=$lNullObj} {
    set pActualPkgName [DboTclHelper_sMakeCString]
    $pPkg GetName $pActualPkgName
    $lDestnLib CopyPackageAll $pPkg $pActualPkgName $lStatus
    $lSourceLib DeletePackage $pPkg

    puts [DboTclHelper_sGetConstCharPtr $pActualPkgName]
    set pPkg [$pkgIter NextPackage $lStatus]
}

$lDestnLib MarkModified
$lSourceLib MarkModified

$lSession MarkAllLibForSave $lDestnLib
$lSession SaveLib $lDestnLib
$lSession RemoveLib $lDestnLib

$lSession MarkAllLibForSave $lSourceLib
$lSession SaveLib $lSourceLib
$lSession RemoveLib $lSourceLib

DboTclHelper_sDeleteSession $lSession

0 CadAP 3 months ago

andakConsultingLtd

Please use below article available on ASK portal.

Article (20508160)
Title: How to copy symbols or packages from one library (.olb) to another using Tcl script in OrCAD Capture
URL: https://support.cadence.com/apex/ArticleAttachmentPortal?id=a1O3w000009lgEWEAY&pageName=ArticleContent

Hope it helps.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 andakConsultingLtd 3 months ago in reply to CadAP

Hi CadAP

Thanks for sharing, I wasn't aware of that resource.

Back to the solution you suggested, it doesn't solve the problem, as the code provided there only copies from source to destination. The code presented by me succesfuly does this too.

The problem in my code is that deleting the package from the source olb leaves some garbage behind. Deleting is not addressed in the article you suggested.

Regards
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 CadAP 3 months ago in reply to andakConsultingLtd

andakConsultingLtd

Please use below code to delete the package

set lSession $::DboSession_s_pDboSession
DboSession -this $lSession
set lNullObj NULL
set lOlbName "test.olb" ; #provide your library which is open in capture.
set lPackageCString [DboTclHelper_sMakeCString ]
set lStatus [DboState]
set libname [DboTclHelper_sMakeCString "$lOlbName"]
# set lNewDboLib [$lSession CreateLib $llibNamecstring $lStatus]
set lDboLibrary [DboSession_GetOpenLib $lSession $libname $lStatus]
set lNameCStr [DboTclHelper_sMakeCString]
set lPackageIter [$lDboLibrary NewPackagesIter $lStatus]
set pPackage [$lPackageIter NextPackage $lStatus]
# $lDboLibrary GetName $libname
set lLibLocation [file normalize [DboTclHelper_sGetConstCharPtr $libname]]
puts [file normalize $lLibLocation]
while {$pPackage != $lNullObj} {
$pPackage GetName $lPackageCString
set lpackagename [DboTclHelper_sGetConstCharPtr $lPackageCString]
puts $lpackagename
set lState [$lDboLibrary DeletePackage $pPackage]
if {[$lState OK] == 1} {

puts "delete $lpackagename successfully."

}
set pPackage [$lPackageIter NextPackage $lStatus]
}
Cancel
Vote Up +1 Vote Down

Sign in to reply

Verify Answer

Cancel
0 andakConsultingLtd 3 months ago in reply to CadAP

Hi CadAP ,

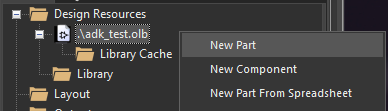

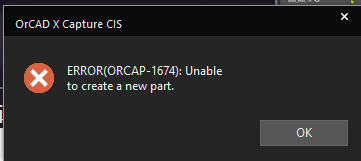

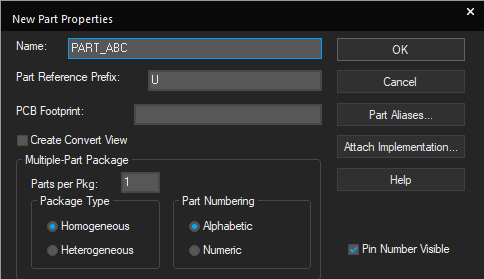

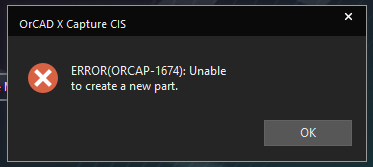

This is no different than my code, except your code operates on a loaded olb. Both scripts delete the package indeed, but when I try to recreate one of the packages that was deleted, Capture throws an error.

This was exactly the problem I was trying to solve since the begining.
If it matters, this happens in 23.1 - S008
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 CadAP 3 months ago in reply to andakConsultingLtd

andakConsultingLtd ,

Can you please let me know your exact steps your doing through tcl code?

I want to try the exact same steps.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
