3D-IC Market Outlook: Technology Roadmaps, Readiness, and Design Implications

The 3D-IC market outlook is entering a decisive phase as the semiconductor industry transitions beyond the limits of traditional Moore's Law scaling. As performance, power efficiency, and system complexity outpace what planar integration can deliver economically, vertical integration and heterogeneous system design are no longer experimental; they are becoming foundational. Advanced packaging technologies such as stacked dies, hybrid bonding, and chiplet-based architectures are reshaping how future compute platforms are conceived, optimized, and manufactured.

This shift is not incremental. It reflects a broader architectural inflection point where performance gains increasingly come from proximity—bringing compute, memory, and specialized accelerators closer together in three dimensions. Industry analysts project that the global 3D-IC packaging market will reach approximately USD 32.9 billion by 2030, growing at a rate of roughly 15% CAGR—fueled by AI acceleration, high-performance computing (HPC), memory stacking, and aggressive packaging capacity expansion across Asia, North America, and Europe. In this context, 3D-IC technology has moved from a niche enabler to a mainstream design imperative.

This blog explores the key 3D-IC market trends, adoption drivers by vertical, the 3D-IC technology roadmap for packaging and interconnect innovation, ecosystem standardization progress, and the resulting design implications for tools and methodologies. It concludes with a practical roadmap checklist to help engineering organizations prepare for the next generation of heterogeneous integration.

Market Drivers and Investment Signals by Vertical

Growth in the 3D-IC and heterogeneous integration market is rooted in fundamental changes in compute demand and semiconductor economics. As traditional transistor scaling delivers diminishing returns in performance per watt and cost per function, system architects are shifting toward vertical integration and chiplet-based partitioning to sustain generational improvements.

AI and HPC Packaging Demand

AI and HPC workloads, particularly large language models (LLMs), recommendation engines, and real-time analytics, demand extreme memory bandwidth, low latency, and tightly coupled compute-memory architectures. 3D-IC designs that integrate logic dies with multiple HBM stacks address these requirements directly, enabling bandwidth scaling that would be impractical with off-package memory. Hyperscalers and accelerator vendors are increasingly signaling roadmaps that prioritize memory stacking and die-to-die interconnect density as primary performance levers.

The design implication here is that memory hierarchy, floorplanning, and power delivery must now be optimized at the package level, not just at the die level.

Telecom and 5G Infrastructure

The rollout of 5G infrastructure and edge compute nodes continues to drive demand for compact, high-throughput modules. Advanced OFDM and massive MIMO radios benefit from 2.5D and 3D packaging approaches that support dense interconnects, minimize signal loss, and facilitate the tighter integration of RF, baseband, and processing elements.

Automotive and IoT Adoption

Automotive electronics, including ADAS and autonomous platforms, represent one of the fastest-growing adoption vectors for heterogeneous integration. These systems must balance high compute performance with stringent thermal, reliability, and lifecycle requirements. Similarly, consumer and internet of things (IoT) devices leverage stacked architectures to achieve form-factor reduction and power efficiency without sacrificing functionality.

Geopolitical and Foundry Investment Trends

On the supply side, advanced packaging capacity is expanding rapidly. The Asia-Pacific region remains the manufacturing center of gravity, while North America and Europe are investing heavily in sovereign semiconductor initiatives to localize advanced packaging and chiplet assembly capabilities. These investments reinforce the long-term viability and scalability of the 3D-IC ecosystem.

Together, these drivers indicate sustained, multi-vertical momentum for 3D-IC adoption, anchoring advanced packaging firmly within future semiconductor roadmaps.

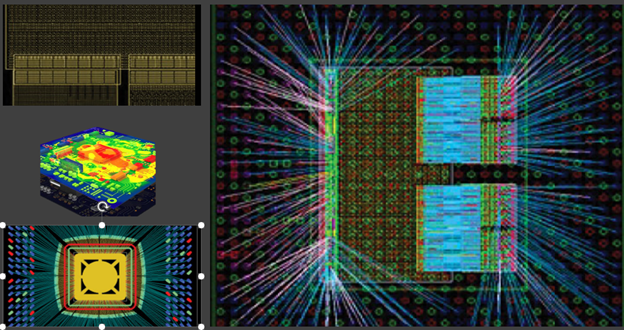

Packaging and Interconnect Innovations on the Horizon

The advanced packaging innovation roadmap is accelerating, with multiple technologies redefining interconnect density, bandwidth scaling, and thermal constraints.

Hybrid Bonding Advancements

Hybrid bonding, enabling direct copper-to-copper connections at pitches below 10 micrometers, is emerging as a cornerstone of next-generation 3D integration. Compared to traditional micro-bump approaches, hybrid bonding dramatically increases I/O density, reduces parasitics, and lowers z-height, making it essential for high-bandwidth AI and HPC systems.

The architectural impact is that finer-pitch bonding enables more granular die partitioning and tighter coupling between compute and memory, reshaping how architects allocate functionality across dies.

TSVs and Next-Generation Interposers

While hybrid bonding adoption accelerates, TSVs remain foundational for vertical connectivity. In parallel, innovation in silicon, glass, and advanced organic interposers aims to strike a balance between electrical performance, cost, and manufacturability. These developments extend the scalability of redistribution layers (RDL) and substrate technologies.

Thermal and Material Innovations

As stacked designs push power densities beyond 1 W/mm², thermal management becomes a first-order design constraint. Research and early commercialization efforts are exploring microfluidic cooling, enhanced thermal via networks, and advanced die-attach materials to mitigate hotspots and improve long-term reliability.

Wafer-to-Wafer and Chiplet Stacking

The commercial deployment of wafer-to-wafer hybrid bonding and multi-die HBM3E stacks, which exceed 1TB/s aggregate bandwidth, demonstrates that true 3D stacking is now viable for production-scale systems. These advances significantly expand the performance envelope of 3D-IC technologies.

Standardization and the Chiplet Ecosystem

Mainstream adoption of 3D-ICs depends on a robust, interoperable chiplet ecosystem supported by industry-wide standards.

UCIe and Interoperability

The universal chiplet interconnect express (UCIe) standard defines physical, electrical, and protocol layers for die-to-die communication. Its adoption reduces integration risk, accelerates chiplet reuse, and enables multi-vendor modular systems—critical for ecosystem scalability.

DFT and 3D Test Standards

Standards such as IEEE 1838 address test access architectures for stacked ICs, enabling known good die (KGD) strategies and improving yield visibility across complex assemblies. Testability is increasingly a differentiator as stacks grow deeper and more heterogeneous.

Consortium-Driven Collaboration

Ecosystem progress relies on close collaboration among foundries, OSATs, EDA vendors, IP providers, and system companies. Consortium-driven models help align standards, manufacturing readiness, and tool qualifications, reducing friction across the value chain.

Implications for Tool Flows and Methodologies

The transition to 3D-ICs fundamentally changes how systems are designed, analyzed, and signed off.

Unified Multi-Die EDA Platforms

Design teams require integrated platforms that span chip, package, and system domains. Unified multi-die environments enable early co-design of partitioning, interconnect planning, and power/thermal tradeoffs—reducing late-stage surprises.

System-Level Multiphysics Analysis

Stacked architectures amplify interactions between electrical, thermal, and mechanical effects. Integrated multiphysics analysis for SI, PI, EM, thermal stress, and warpage is essential for achieving predictable signoff and manufacturing yield.

3D Design Kits and IP Reuse

Pre-validated 3D design kits (3DKs) and reusable chiplet IP reduce integration risk and compress development timelines, particularly in multi-vendor environments.

Silicon-to-System Convergence

Preserving connectivity from silicon through package to system enables manufacturing-aware design decisions, improves yield predictability, and supports system-level optimization in heterogeneous architectures.

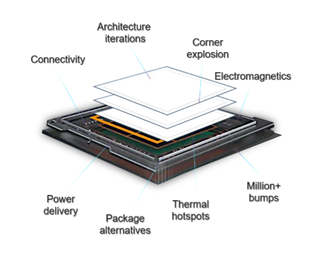

Roadmap Checklist: Readiness for Upcoming Nodes

To prepare for future 3D-IC nodes, design teams should focus on the following:

• Adopt a Heterogeneous Integration Strategy: Architect systems as collections of optimized chiplets rather than monolithic SoCs.
• Invest in Advanced EDA Toolchains: Ensure support for unified visualization, automated floorplanning, and large-scale multiphysics analysis.
• Implement Industry Standards: Embrace UCIe and IEEE 1838 to improve interoperability, testability, and yield.
• Engage with the Ecosystem: Participate in consortia and closely track foundry and OSAT roadmaps.
• Plan Thermal and Power Early: Address thermal constraints during architecture definition, not after layout.
• Align with Manufacturing Partners: Understand hybrid bonding readiness, wafer-level processes, and supply chain constraints early.

A Transformational Era for 3D-IC Technology

The future of 3D-IC technology reflects a structural transformation across the semiconductor landscape. From AI and HPC to automotive and communications, vertical integration and heterogeneous innovation are redefining performance scaling, manufacturing strategies, and design methodologies. Advanced interconnects, maturing standards, and expanding packaging capacity are accelerating the shift from experimental adoption to mainstream deployment.

Cadence's Integrity 3D-IC Platform—combined with system-aware, multiphysics analysis workflows—supports this transition by enabling predictable, manufacturing-aware design closure across complex 3D systems. As the industry rethinks how compute platforms are architected and delivered, 3D-IC technology stands at the center of a new era—one defined by modularity, proximity, and system-level optimization rather than transistor scaling alone.
